Made in China 35V 82000uF Screw Terminals Aluminum Electrolytic Capacitor 35V 8200MFD
Products Description
Made in China 35V 82000uF Screw Terminals Aluminum Electrolytic Capacitor 35V 82000MFD
Screw terminal aluminum electrolytic capacitor 35V 82000uF, Screw type Large can aluminum electrolytic capacitor 35V, 35V 82000MFD Bolt type Electrolytic Capacitor, 35V 82000uF 500 hours 105C electrolytic capacitor offered by AnXon Electronic
|
Rated Spec:
|
35V 82000uF, 35V 82000MFD
|
|
Tolerance:
|
M, ±20%
|
|
Type:
|
Screw terminal, Large can, Bolt type
|
|
Load life :
|
500 hours at 105℃
|
|
Operating Temperature:
|
-40℃ ~ +85℃
|
|
Size / Dimension(ΦD×L):
|
D: 50mm, L: 92mm
|
Our Advantage :
1. Short lead time, quick delivery
2. Low cost price , great quality
3. 100% convinced by world class customers
4. Custom case size capacitor available
2. Low cost price , great quality
3. 100% convinced by world class customers
4. Custom case size capacitor available

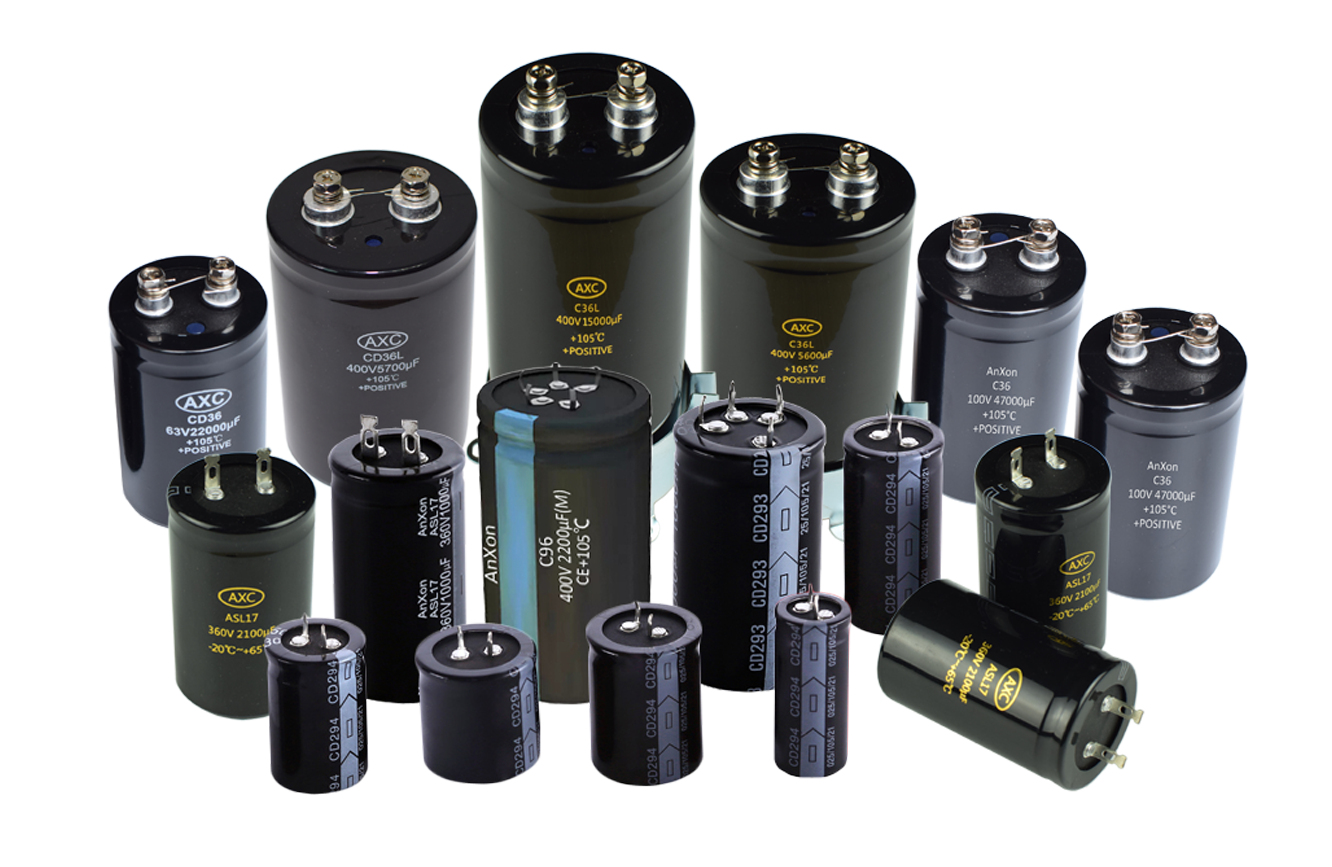

Screw Terminal Large Can Aluminum Electrolytic Capacitor Application Guide
• UPS, Industrial power supply
• Frequency converters, Wind power converters
• Switch-mode power supplies
• Solar inverters
• Professional power supplies
• Frequency converters, Wind power converters
• Switch-mode power supplies
• Solar inverters
• Professional power supplies
Aluminum Electrolytic Capacitors with screw terminals 10V, 16V, 25V, 35V, 50V, 63V, 80V, 100V, 160V, 200V, 250V, 350V, 400V, 450V
63V Informations
63V Informations
|
Series
|
Spec.
|
Cap Code
|
Dimension(mm)
|
Load life
|
|
|
D
|
L
|
||||
|
C36L
|
10V 33000UF
|
333
|
35
|
60
|
105℃ 500 hours
|
|
25V 8200UF
|
822
|
35
|
50
|
||
|
25V 220000UF
|
224
|
65
|
120
|
||
|
25V 270000UF
|
274
|
76
|
120
|
||
|
35V 82000UF
|
823
|
50
|
92
|
||
|
40V 47000UF
|
473
|
50
|
80
|
||
|
40V 100000UF
|
104
|
64
|
100
|
||
|
50V 68000UF
|
683
|
65
|
100
|
||
|
50V 100000UF
|
104
|
76
|
100
|
||
|
50V 220000UF
|
224
|
76
|
180
|
||

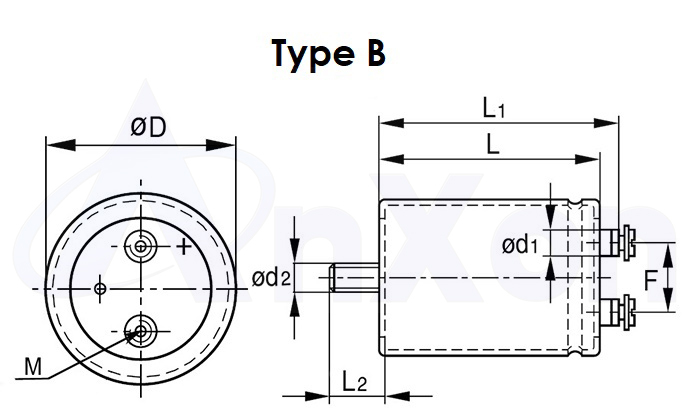

Drawing
Products

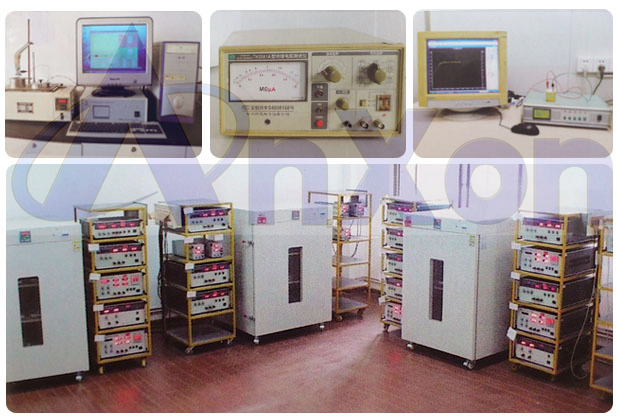

Testing

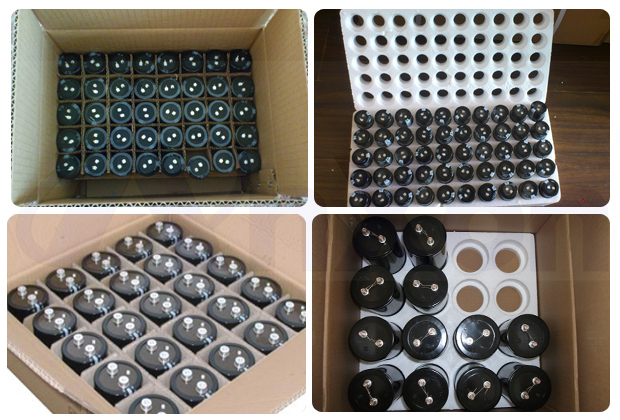

Packing
