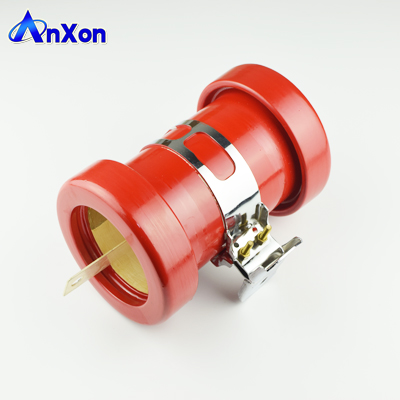

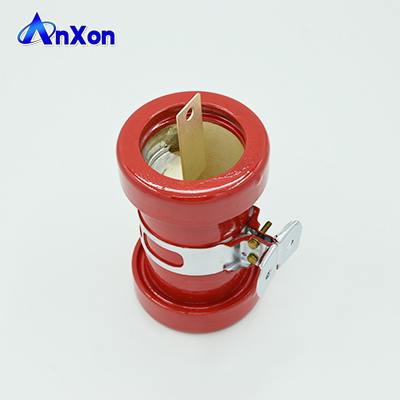

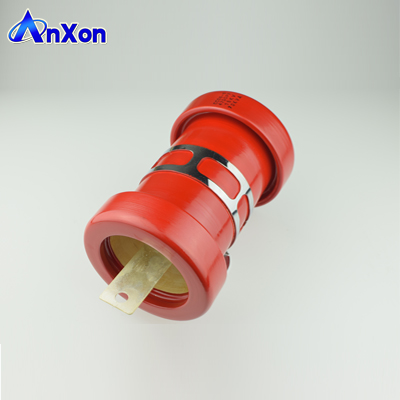

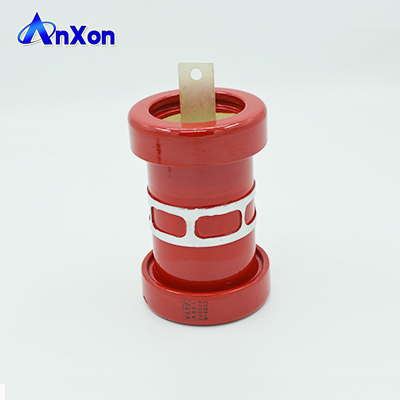

CCG5-5 15KV 4700PF 100KVA Cylinder High Power Ceramic Capacitor
Model Number: CCG5-5
Type: CERAMIC CAPACITOR
Place of Origin: Zhejiang, China
Brand Name: AnXon RF Power plate capacitor
Capacitance: 4700PF
Tolerance: 10%
Package Type: Surface Mount
Rated Voltage: 15KV
Operating Temperature: -30°C ~ 85°C
Application: RF / Microwave
Name: RF plate ceramic capacitor
Part Number: CCG5-5
Voltage: 15KV
Rated power: 100KVA
Dielectric: R85
Insulation Resistance: Min. 10000MΩ
Dissipation Factor: Max. 0.08% (1kHz 1V)
Temperature characteristics: -750PPM/°C
Type: CERAMIC CAPACITOR
Place of Origin: Zhejiang, China
Brand Name: AnXon RF Power plate capacitor
Capacitance: 4700PF
Tolerance: 10%
Package Type: Surface Mount
Rated Voltage: 15KV
Operating Temperature: -30°C ~ 85°C
Application: RF / Microwave
Name: RF plate ceramic capacitor
Part Number: CCG5-5
Voltage: 15KV
Rated power: 100KVA
Dielectric: R85
Insulation Resistance: Min. 10000MΩ
Dissipation Factor: Max. 0.08% (1kHz 1V)
Temperature characteristics: -750PPM/°C
|
Description
Product Description
AnXon CCG5-5 15KV 4700PF 100KVACylinder High Power Ceramic Capacitor
Cixi AnXon Electronic Co., Ltd is a leader in the design and manufacture of complex electronic ceramic components and assemblies used in a wide range of applications and cutting edge technologies. AnXon specializes in the development and production of dielectric and ferroelectric materials and components. This range of high voltage RF discs capacitors is fabricated from very low loss CLASS 1 ceramic dielectric materials which permit them to carry very high electrical loads over a wide frequency range.
Related Products
High frequency high power RF ceramic capacitors one stop solutions by AnXon
These capacitors are used in oscillators, coupling circuits or bypass capacitors in industrial or medical high frequency equipment. They are suitable to use as coupling capacitors for transmission line and carrier frequency equipment. X-ray equipment,broadcast equipment, induction heating power supplies (tube and solid state), cable fault finders, plasma generators, RF powersupplies, dielectric heating, lasers and more.
Product Application
AnXon High frequency high power RF plate ceramic capacitors Applications
Radio broadcast transmitters
HF filter, By-Pass & Coupling Circuits
High power matching tuned circuits, Antenna circuits
High power matching networks, Plasma Generators
High quality medical imaging systems (MRI)
Induction and Dielectric Heating Equipment
Industrial Applications
HF filter, By-Pass & Coupling Circuits
High power matching tuned circuits, Antenna circuits
High power matching networks, Plasma Generators
High quality medical imaging systems (MRI)
Induction and Dielectric Heating Equipment
Industrial Applications
Quality Control
AnXon High frequency high power RF plate ceramic capacitors are 100% tested of the below parameters
• Capacitance
• Tolerance
• Dielectric withstanding voltage
• Dissipation Factor
• Insulation Resistance
Process and inspection data are maintained on file and available upon special request.
• Tolerance
• Dielectric withstanding voltage
• Dissipation Factor
• Insulation Resistance
Process and inspection data are maintained on file and available upon special request.
Certifications
Our Company
Cixi AnXon Electronic Co., Ltd, A China based manufacturing company, specialized manufacturer and supplier of high voltage ceramic capacitors, doorknob capacitors, pulse power capacitors, RF power capacitors, AC live line capacitors, high Q capacitors, high temperature capacitors.
Main Products:
1). High Voltage Disc Ceramic Capacitors
HV ceramic disc capacitors, ultra hv screw doorknob capacitors, AC live line capacitors, Voltage Multiplier Assembly, Ceramic
capacitor stacks, Pulse power capacitors, high voltage AC ceramic capacitors
2). RF power ceramic capacitors,
Disk / plate capacitors, Water cooled power capacitors, Feedthrough RF capacitors, Tubular ceramic capacitors
3). High Q power ceramic capacitors
High Q multilayer capacitors, RF / Microwave Multilayer Capacitors, High Q MLCC
