CCG61-1 5KV 15PF High voltage high frequency ceramic capacitor

Home > Products > Ceramic Capacitor > RF Power Ceramic Capacitor >

Model Number: CCG61-1
Type: CERAMIC CAPACITOR
Place of Origin: Zhejiang, China
Brand Name: AnXon RF Power plate capacitor
Capacitance: 15PF, 15PF
Tolerance: 10%
Package Type: Surface Mount
Rated Voltage: 5KV
Operating Temperature: -30°C ~ 85°C
Application: RF / Microwave
Name: RF plate ceramic capacitor
Part Number: CCG61-1
Voltage: 5KV
Dielectric: R85
Insulation Resistance: Min. 10000MΩ
Dissipation Factor: Max. 0.08% (1kHz 1V)
Temperature characteristics: -750PPM/°C

Description

Product Description

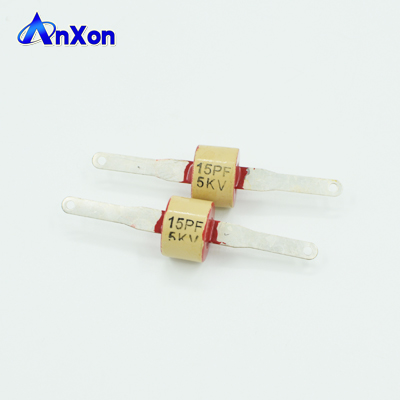

 CCG61-1 5KV 15PF High voltage high frequency ceramic capacitor

Cixi AnXon Electronic Co., Ltd is a leader in the design and manufacture of complex electronic ceramic components and assemblies used in a wide range of applications and cutting edge technologies. AnXon specializes in the development and production of dielectric and ferroelectric materials and components. This range of high voltage RF discs capacitors is fabricated from very low loss CLASS 1 ceramic dielectric materials which permit them to carry very high electrical loads over a wide frequency range.

P/N	Capacitance	Voltage（KV）		RF Power	Rated Current	Dimensions（mm）			Temperature characteristics
	（PF）	DC	HF(rms)	(kVA)	（A）	D	H	L	-750
CCG61-1	15	5	4	3	1.5	21	15	90
	18							89
	22							88
	27							87
	33							86
	39							85
	47							84
	56							83
	68							83
CCG61-2	39	8	6	5	2	34	19	92
	47							91
	56							90

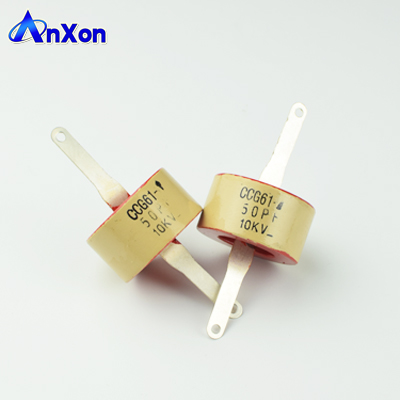

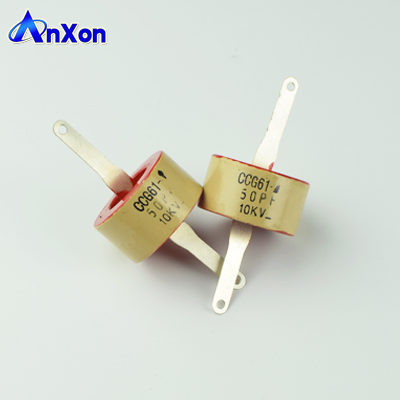

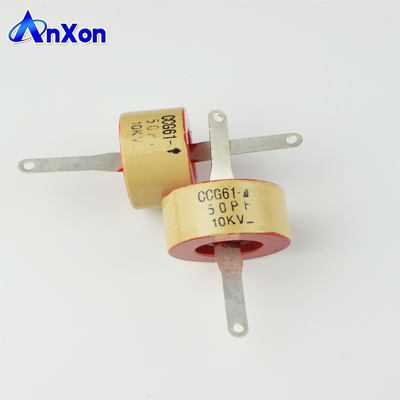

CCG61-3	27	10	5	10	3	34	21	94
	33							93
	50							93
CCG61-4	22	10	8	15	5	37	25	95

High frequency high power RF ceramic capacitors one stop solutions by AnXon

These capacitors are used in oscillators, coupling circuits or bypass capacitors in industrial or medical high frequency equipment. They are suitable to use as coupling capacitors for transmission line and carrier frequency equipment. X-ray equipment,broadcast equipment, induction heating power supplies (tube and solid state), cable fault finders, plasma generators, RF powersupplies, dielectric heating, lasers and more.

Product Application

AnXon High frequency high power RF plate ceramic capacitors Applications

Radio broadcast transmitters

HF filter, By-Pass & Coupling Circuits

High power matching tuned circuits, Antenna circuits

High power matching networks, Plasma Generators

High quality medical imaging systems (MRI)

Induction and Dielectric Heating Equipment

Industrial Applications

Quality Control

AnXon High frequency high power RF plate ceramic capacitors are 100% tested of the below parameters

• Capacitance

• Tolerance

• Dielectric withstanding voltage

• Dissipation Factor

• Insulation Resistance

Process and inspection data are maintained on file and available upon special request.
