AXCT8GE40152K2D1B 20KV 1500PF 152 doorknob ceramic capacitor
Model Number: CT8G
Type: CERAMIC CAPACITOR
Place of Origin: Zhejiang, China
Brand Name: AnXon
Capacitance: 1500PF
Media Available: datasheet, Photo
Tolerance: 10%
Package Type:Through Hole
Rated Voltage:20KV
Operating Temperature:-30°C ~ 85°C
Application: RF / Microwave, RF / Microwave
Withstanding voltage:1.5 times rated voltage
Partial Discharge:10PC max at 50% of rated voltage
Dissipation factor:0.2% max
Insulation resistance:100,000 MΩ min
Long life:10 Years min
High frequency:1MHZ max

Contact: *
Company: MSN/skype:
Subject:
Tel: Fax:
E-mail: * Website:
Content: *
Code: *(marked *should be filled)

Description
Product Description

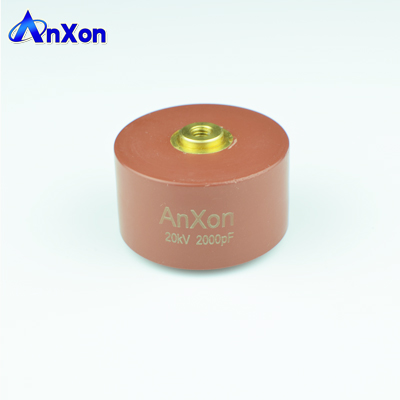

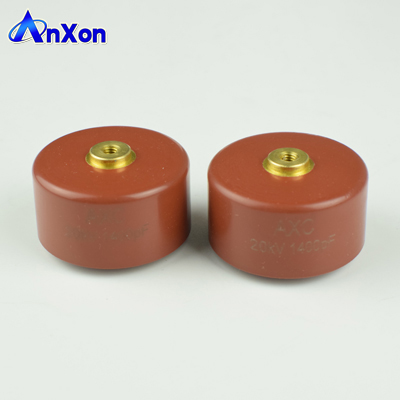

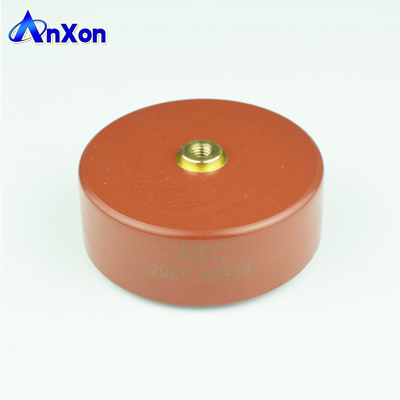

AXCT8GE40152K2D1B 20KV 1500PF 152 doorknob ceramic capacitor


High Voltage Ceramic Capacitor, Molded type Ultra-high Voltage Ceramic Capacitors offered by AnXon Electronic, high quality ceramic capacitor supplier

Rated Spec:
20KV 1500PF , 20KV 150
Tolerance:
K ±10%, J ±5% available on request
Type:
Molded / Doorknob / Screw Mounting
Ceramic Dielectric :
N4700
Operating Temperature:
-35C ~ 85C
Size / Dimension(ΦD×T*F):
D:40mm, H:20mm, L:24mm, M4
Product features
High voltage ceramic capacitors are made of ceramic dielectric. The main features of high voltage ceramic capacitors is excellent withstand voltage. voltage from 3.6KV, 6.5KV, 7.2KV, 10KV, 12KV, 13KV, 15KV, 20KV, 24KV, 25KV, 30KV, 35KV, 36KV, 40KV, 50KV, 60KV, 70KV, 80KV, 100KV, 120KV, 150KV, etc. Used for various AC and DC high voltage circuit applications.
Common types of class 1 ceramic materials are: NPO, C0G, UJ, SL, N4700, etc. The temperature coefficient of these type is quite good. There is a linear relationship of temperature and capacitance. Frequency characteristics and voltage characteristics are also very good, but because the dielectric constant is small, it not suitable to make large capacitance capacitors.
The common types of class 2 ceramic materials are: Y5R, Y5P, Y5T, Y5S, Y5U, Y5V, etc. The temperature coefficient of these ceramic material is non-linear, and the capacity can be quite large, However, the frequency and temperature are not constant.
AnXon high voltage ceramic capacitors can be customized according to special requirements, take internal parallel or series design to achieve high voltage, large capacity, high operating frequency, high withstand impulse voltage, ultra low partial discharge requirements and other requirements can meet the different needs of customers.
The Cylindrical ultra high voltage ceramic capacitors of the AnXon CT8G series have been widely used in power transmission and distribution system power equipment and pulse energy processing equipment such as: power compensation, current limiting, filtering, metering, energy storage and distribution. The particularity of the power system: AC high voltage, high frequency, in the outdoor environment (-40°C to +60°C), lightning strike, high current, etc. In harsh environments, the capacitor is required to have super stability, ie The rate of change is small; at the same time, the measurement, the voltage, etc., require high precision, which places extremely severe demands on the partial discharge of high voltage ceramic capacitors under such circumstances. AnXon high voltage ceramic capacitors have excellent charge and discharge performance, high withstand voltage, good frequency characteristics, can withstand high impulse voltage, ultra low partial discharge characteristics, and AC and DC applications for customers to choose.

High Voltage Ceramic Capacitor 3.6KV, 6.5KV, 7.2KV, 10KV, 12KV, 13KV, 15KV, 20KV, 24KV, 25KV, 30KV, 35KV, 36KV, 40KV, 50KV, 60KV, 70KV, 80KV, 100KV, 120KV, 150KV Information:

• Rated Voltage (V): 3.6KVrms -70KVrms, 10KVdc-150KVdc
• Withstand Voltage: 6KVrms-50KVrms, 20KVdc-200KVdc
• Impulse Voltage: 45KVdc-225KVdc
• Capacitance Range: 10pF - 100000pF
• Operating frequency: 20KHZ-1000KHZ
• Materials: K100, K150, K300, K650, K850, K1000, K1500, N4700, Y5R, Y5S, Y5T, Y5P, Y5U, Y5V
High voltage ceramic capacitor supplier, molded doorknob capacitor manufacturer.
More related specifications

Part Number
Rated Voltage
(kVdc)
Capacitance
Dimensions(mm)
C (pF)
Tol (%)
Dielectric
D±1
H±1
L±2
M
AXCT8GE40501K2D1B







20
500







±10
N4700
30
20
24
4
AXCT8GE40561K2D1B
560
N4700
30
18
22
4
AXCT8GE40881K2D1B
880
N4700
38
18
22
4
AXCT8GE40102K2D1B
1000
N4700
38
22
26
4
AXCT8GD30102K2D1B
1000
Y5T
30
23
27
4
AXCT8GE40142K2D1B
1400
N4700
38
20
24
4
AXCT8GE40152K2D1B
1500
N4700
40
20
24
4
AXCT8GE40172K2D1B
1700
N4700
40
18
22
4
AXCT8GD30252K2D1B
2500
Y5T
48
22
26
4
AXCT8GD50242K2D1B
2700
Y5T
38
21
25
4
Product Type

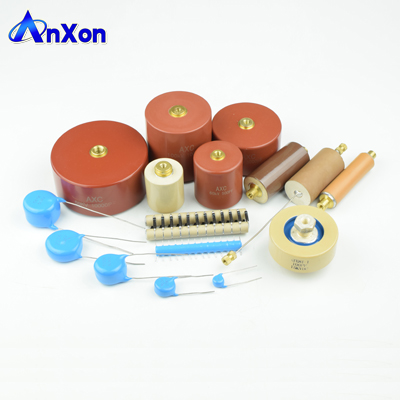

AnXon offers a variety of conventional ultra high voltage ceramic capacitors, but also can customize a variety of special-shaped capacitors according to customer requirements
Quick Select guide of mainly used ceramic dielectric
Dielectric class
SL
N4700
Y5T
Y5S
Operating temperature range (ºC)
-30/+85°C
-30/+85°C
-30/+85°C
-30/+85°C
Capacitance change with temperature (%)
+/-650PPM/°C
+22/-33%
+22/-33%
+22/-22%
Typical dielectric constant
150~1000
1850~2150
2500~6500
3500~4500
Dielectric strength (kVDC/mm)
8.0
8.0
6.0
6.0
Dissipation factor (1kHz/1VRMS/20ºC)
0.06%
0.10%
0.20%
0.20%
Insulation resistance (1000VD/20ºC/60s)
>1000GΩ
>100GΩ
>100GΩ
>100GΩ
Rated voltage (UR)
10 to 150kVdc
10 to 150kVdc
10 to 150kVdc
10 to 150kVdc
Test voltage (UTT) (50Hz, in oil, 60s)
12 to 100kVrms
12 to 100kVrms
12 to 100kVrms
12 to 100kVrms
Impulse voltage(UI)
35 to 200kVdc
35 to 200kVdc
35 to 200kVdc
35 to 200kVdc
Capacitance range (20ºC – 1kHz – 1VRMS)
10pF to 500pF
10pF to 5600pF
10pF to 0.02uF
10pF to 0.02uF
Tolerance
Standard: ±10%
Standard: ±10%
Standard: ±10%
Standard: ±10%
Product Application
1. Used for high power pulse power supply, particle accelerator, electromagnetic microwave equipment, laser photoelectric
equipment, electronic information equipment, radar detection, non-destructive testing X_RAY / CT machinery, material detection, electrostatic precipitator electric field, various types of special pulse power supply.
2. Supply of electricity, acceptance of interrupters of electrical equipment, zero-phase detection, breakers, surge arresters,
voltage divider elements of high-voltage measurement equipment, and other circuits that use AC high voltage.
3. High voltage power supply circuit for laser equipment, directional energy/high-energy laser source.
4. High voltage power circuits or other DC high-voltage power circuits for various measurement devices.
5. Power storage, voltage divider and protection circuit.
High voltage doorknob ceramic capacitor applications
• Gas lasers
• High-voltage dividers
• Marx generators, Power generators
• High-voltage power supply, DC HV power supplies
• High-voltage coupling devices
• Power line coupling system for Internet & Telecom
• Lightning arresters, voltage distribution systems
• Electron microscopes, synchroscopes
• Electrostatic coating machines
High voltage doorknob ceramic capacitor Features
• Excellent behavior on pulse and fast discharge conditions
• Low dissipation factor
• Very low partial discharge
• Excellent voltage characteristic
• Molded type, Screw or Axial Leads available
• Coated and uncoated devices available
Quality Control



High voltage doorknob ceramic capacitor from AnXon are 100% tested of the below parameters

• Capacitance
• Tolerance
• Dielectric withstanding voltage
• Dissipation Factor
• Insulation Resistance
• Partial discharge: as requested
• impulse voltage: sampling

Rigorous design standards, sophisticated production equipment, advanced production technology, and rigorous testing procedures are the quality assurance of AnXon ultra high voltage ceramic capacitors, and it is also the core of our continuous development and growth. Process and inspection data are maintained on file and available upon special request.
Company advantage
Since its establishment, Cixi AnXon Electronics Co., Ltd. has been committed to provide customers with proven, reliable and customized electronic components. After more than ten years of development, AnXon ceramic capacitor products have successfully replaced imported international brands AVX, TDK, Murata, Vishay also exports a large number of markets in North America, South America, Europe, Middle East and Southeast Asia. In particular, high voltage screw terminal ceramic capacitors, high voltage lead type disc ceramic capacitors, high voltage MLCC, high frequency high power ceramic capacitors, high voltage ceramic capacitors stacks and multiplier assembly, high temperature ceramic capacitors are greatly trusted by the majority of domestic and foreign customers. AnXon Electronics looking forward to cooperate with you in the near future.
FAQ
What are the Advantages of a High Voltage Doorknob Ceramic Capacitor?

In high voltage ceramic capacitors application field, requiring a small, high voltage and high frequency characteristics. With the progress of materials, electrodes and manufacturing technology, great progress has been made in the development of high voltage ceramic capacitors, and has been widely used. High voltage ceramic capacitors have become an indispensable component of high power high voltage electronic products.


* Name: doorknob shape high voltage ceramic capacitor
* Appearance of small size
* Relative to other material more portable and reliable
* Rapid pulse charge and discharge performance
* Capacity with low temperature gradient
* Under high or low temperature applications
* Different shapes can be customized
Widely used in high power pulse power, particle accelerators, electromagnetic microwave equipment, laser photoelectric equipment, electronic equipment, radar detection, nondestructive testing, material, electrostatic dust removal electric field, all kinds of special pulse power supply, ect
