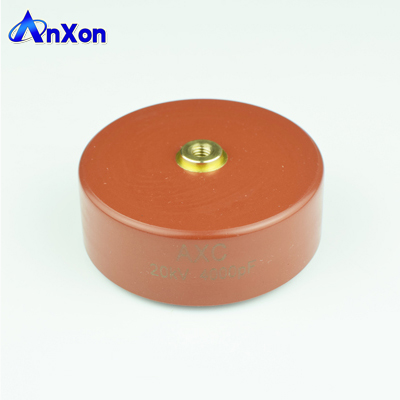

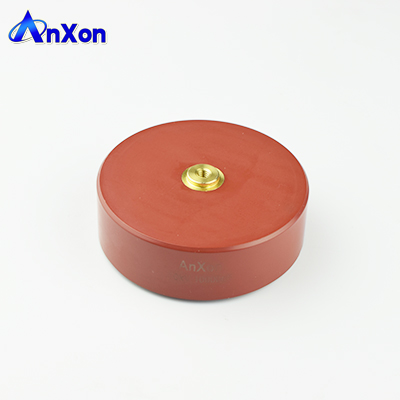

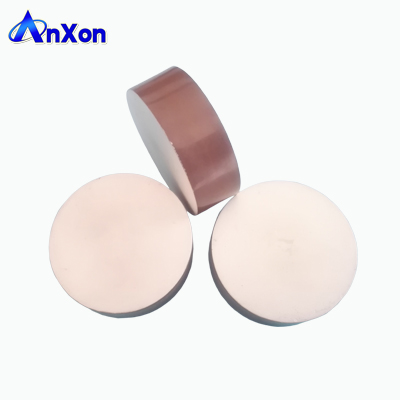

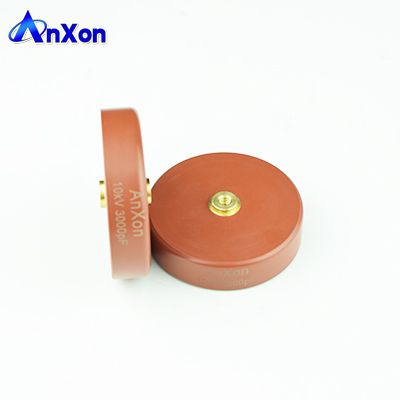

AnXon CT8G 6KV 16000PF Y5T High voltage ceramic capacitor
Model Number:CT8G
Type: CERAMIC CAPACITOR
Brand Name: AnXon
Place of Origin: Zhejiang, China
Rated Voltage: 6KV
Capacitance: 16000PF
Tolerance:10%
Withstanding voltage:1.5 times rated voltage
Operating Temperature:-30°C ~ 85°C
Application: RF / Microwave
Partial Discharge:10PC max at 50% of rated voltage
Dissipation factor:0.2% max
Insulation resistance:100,000 MΩ min
Long life:10 Years min
High frequency:1MHZ max
Package Type: Through Hole
Type: CERAMIC CAPACITOR
Brand Name: AnXon
Place of Origin: Zhejiang, China
Rated Voltage: 6KV
Capacitance: 16000PF
Tolerance:10%
Withstanding voltage:1.5 times rated voltage
Operating Temperature:-30°C ~ 85°C
Application: RF / Microwave
Partial Discharge:10PC max at 50% of rated voltage
Dissipation factor:0.2% max
Insulation resistance:100,000 MΩ min
Long life:10 Years min
High frequency:1MHZ max
Package Type: Through Hole
|
Description
Product Description
AnXon CT8G 6KV 16000PF Y5T High voltage ceramic capacitor
High Voltage Ceramic Capacitor, Molded type Ultra-high Voltage Ceramic Capacitors offered by AnXon Electronic, high quality
ceramic capacitor supplier
Product features
High voltage ceramic capacitors are made of ceramic dielectric. The main features of high voltage ceramic capacitors is excellent withstand voltage. voltage from 3.6KV, 6.5KV, 7.2KV, 10KV, 12KV, 13KV, 15KV, 20KV, 24KV, 25KV, 30KV, 35KV, 36KV, 40KV, 50KV, 60KV, 70KV, 80KV, 100KV, 120KV, 150KV, etc. Used for various AC and DC high voltage circuit applications.
Common types of class 1 ceramic materials are: NPO, C0G, UJ, SL, N4700, etc. The temperature coefficient of these type is quite good. There is a linear relationship of temperature and capacitance. Frequency characteristics and voltage characteristics are also very good, but because the dielectric constant is small, it not suitable to make large capacitance capacitors.
The common types of class 2 ceramic materials are: Y5R, Y5P, Y5T, Y5S, Y5U, Y5V, etc. The temperature coefficient of these ceramic material is non-linear, and the capacity can be quite large, However, the frequency and temperature are not constant.
AnXon high voltage ceramic capacitors can be customized according to special requirements, take internal parallel or series design to achieve high voltage, large capacity, high operating frequency, high withstand impulse voltage, ultra low partial discharge requirements and other requirements can meet the different needs of customers.
The Cylindrical ultra high voltage ceramic capacitors of the AnXon CT8G series have been widely used in power transmission and distribution system power equipment and pulse energy processing equipment such as: power compensation, current limiting, filtering, metering, energy storage and distribution. The particularity of the power system: AC high voltage, high frequency, in the outdoor environment (-40°C to +60°C), lightning strike, high current, etc. In harsh environments, the capacitor is required to have super stability, ie The rate of change is small; at the same time, the measurement, the voltage, etc., require high precision, which places extremely severe demands on the partial discharge of high voltage ceramic capacitors under such circumstances. AnXon high voltage ceramic capacitors have excellent charge and discharge performance, high withstand voltage, good frequency characteristics, can withstand high impulse voltage, ultra low partial discharge characteristics, and AC and DC applications for customers to choose.
High Voltage Ceramic Capacitor 3.6KV, 6.5KV, 7.2KV, 10KV, 12KV, 13KV, 15KV, 20KV, 24KV, 25KV, 30KV, 35KV, 36KV, 40KV, 50KV, 60KV, 70KV, 80KV, 100KV, 120KV, 150KV Information:
• Rated Voltage (V): 3.6KVrms -70KVrms, 10KVdc-150KVdc
• Withstand Voltage: 6KVrms-50KVrms, 20KVdc-200KVdc
• Impulse Voltage: 45KVdc-225KVdc
• Capacitance Range: 10pF - 100000pF
• Operating frequency: 20KHZ-1000KHZ
• Materials: K100, K150, K300, K650, K850, K1000, K1500, N4700, Y5R, Y5S, Y5T, Y5P, Y5U, Y5V
• Withstand Voltage: 6KVrms-50KVrms, 20KVdc-200KVdc
• Impulse Voltage: 45KVdc-225KVdc
• Capacitance Range: 10pF - 100000pF
• Operating frequency: 20KHZ-1000KHZ
• Materials: K100, K150, K300, K650, K850, K1000, K1500, N4700, Y5R, Y5S, Y5T, Y5P, Y5U, Y5V
High voltage ceramic capacitor supplier, molded doorknob capacitor manufacturer.
More related specifications
|
Part Number |
Rated |
Rated |
Ceramic |
Dimensions |
Ceramic |
|||
|
D |
T |
H |
M |
|||||
|
AXCT8GD50163KXD1B |
6 |
16000 |
Y5T |
60 |
14 |
18 |
4 |
D5 |
|
AXCT8GD30203KXD1B |
6 |
20000 |
Y5T |
80 |
16 |
20 |
5 |
D3 |
|
AXCT8GD50253KXD1B |
6 |
25000 |
Y5T |
80 |
16 |
20 |
5 |
D5 |
|
AXCT8GC40421KYD1B |
10 |
420 |
DL |
38 |
15 |
19 |
4 |
C4 |
|
AXCT8GE40561KYD1B |
10 |
560 |
N4700 |
24 |
14 |
18 |
4 |
E4 |
|
AXCT8GE40701KYD1B |
10 |
700 |
N4700 |
30 |
15 |
19 |
4 |
E4 |
|
AXCT8GC80102KYD1B |
10 |
1000 |
DL |
40 |
14 |
18 |
4 |
C8 |
|
AXCT8GD30102KYD1B |
10 |
1000 |
Y5T |
30 |
16 |
20 |
4 |
D3 |
|
AXCT8GE40122KYD1B |
10 |
1200 |
N4700 |
38 |
16 |
20 |
4 |
E4 |
|
AXCT8GE40152KYD1B |
10 |
1500 |
N4700 |
38 |
17 |
21 |
4 |
E4 |
|
AXCT8GE40282KYD1B |
10 |
2800 |
N4700 |
40 |
15 |
19 |
4 |
E4 |
|
AXCT8GC80302KYD1B |
10 |
3000 |
DL |
60 |
14 |
18 |
5 |
C8 |
|
AXCT8GD30302KYD1B |
10 |
3000 |
Y5T |
40 |
18 |
22 |
4 |
D3 |
|
AXCT8GD50332KYD1B |
10 |
3300 |
Y5T |
38 |
18 |
22 |
4 |
D5 |
|
AXCT8GE40402KYD1B |
10 |
4000 |
N4700 |
60 |
20 |
24 |
5 |
E4 |
|
AXCT8GE40502KYD1B |
10 |
5000 |
N4700 |
60 |
18 |
22 |
5 |
E4 |
|
AXCT8GD50852KYD1B |
10 |
8500 |
Y5T |
60 |
18 |
22 |
4 |
D5 |
|
AXCT8GE40103KYD1B |
10 |
10000 |
N4700 |
80 |
17 |
21 |
5 |
E4 |
|
AXCT8GP30103KYD1B |
10 |
10000 |
Y5P |
80 |
22 |
26 |
5 |
P3 |
|
AXCT8GD50103KYD1B |
10 |
10000 |
Y5T |
60 |
16 |
20 |
4 |
D5 |
|
AXCT8GE40113KYD1B |
10 |
11000 |
N4700 |
86 |
18 |
22 |
5 |
E4 |
|
AXCT8GE40123KYD1B |
10 |
12000 |
N4700 |
86 |
18 |
22 |
5 |
E4 |
|
AXCT8GD50153KYD1B |
10 |
15000 |
Y5T |
80 |
20 |
24 |
5 |
D5 |
|
AXCT8GD50203KYD1B |
10 |
20000 |
Y5T |
86 |
20 |
24 |
5 |
D5 |
Product Type
AnXon offers a variety of conventional ultra high voltage ceramic capacitors, but also can customize a variety of special-shaped capacitors according to customer requirements
Quick Select guide of mainly used ceramic dielectric
Product Application
1. Used for high power pulse power supply, particle accelerator, electromagnetic microwave equipment, laser photoelectric
equipment, electronic information equipment, radar detection, non-destructive testing X_RAY / CT machinery, material detection, electrostatic precipitator electric field, various types of special pulse power supply.
equipment, electronic information equipment, radar detection, non-destructive testing X_RAY / CT machinery, material detection, electrostatic precipitator electric field, various types of special pulse power supply.
2. Supply of electricity, acceptance of interrupters of electrical equipment, zero-phase detection, breakers, surge arresters,
voltage divider elements of high-voltage measurement equipment, and other circuits that use AC high voltage.
voltage divider elements of high-voltage measurement equipment, and other circuits that use AC high voltage.
3. High voltage power supply circuit for laser equipment, directional energy/high-energy laser source.
4. High voltage power circuits or other DC high-voltage power circuits for various measurement devices.
5. Power storage, voltage divider and protection circuit.
4. High voltage power circuits or other DC high-voltage power circuits for various measurement devices.
5. Power storage, voltage divider and protection circuit.
High voltage doorknob ceramic capacitor applications
• Gas lasers
• High-voltage dividers
• Marx generators, Power generators
• High-voltage power supply, DC HV power supplies
• High-voltage coupling devices
• Power line coupling system for Internet & Telecom
• Lightning arresters, voltage distribution systems
• Electron microscopes, synchroscopes
• Electrostatic coating machines
• High-voltage dividers
• Marx generators, Power generators
• High-voltage power supply, DC HV power supplies
• High-voltage coupling devices
• Power line coupling system for Internet & Telecom
• Lightning arresters, voltage distribution systems
• Electron microscopes, synchroscopes
• Electrostatic coating machines
High voltage doorknob ceramic capacitor Features
• Excellent behavior on pulse and fast discharge conditions
• Low dissipation factor
• Very low partial discharge
• Excellent voltage characteristic
• Molded type, Screw or Axial Leads available
• Coated and uncoated devices available
• Low dissipation factor
• Very low partial discharge
• Excellent voltage characteristic
• Molded type, Screw or Axial Leads available
• Coated and uncoated devices available
Quality Control
High voltage doorknob ceramic capacitor from AnXon are 100% tested of the below parameters
• Capacitance
• Tolerance
• Dielectric withstanding voltage
• Dissipation Factor
• Insulation Resistance
• Partial discharge: as requested
• impulse voltage: sampling
Rigorous design standards, sophisticated production equipment, advanced production technology, and rigorous testing procedures are the quality assurance of AnXon ultra high voltage ceramic capacitors, and it is also the core of our continuous development and growth. Process and inspection data are maintained on file and available upon special request.
Company advantage
Since its establishment, Cixi AnXon Electronics Co., Ltd. has been committed to provide customers with proven, reliable and customized electronic components. After more than ten years of development, AnXon ceramic capacitor products have successfully replaced imported international brands AVX, TDK, Murata, Vishay also exports a large number of markets in North America, South America, Europe, Middle East and Southeast Asia. In particular, high voltage screw terminal ceramic capacitors, high voltage lead type disc ceramic capacitors, high voltage MLCC, high frequency high power ceramic capacitors, high voltage ceramic capacitors stacks and multiplier assembly, high temperature ceramic capacitors are greatly trusted by the majority of domestic and foreign customers. AnXon Electronics looking forward to cooperate with you in the near future.
FAQ
What are the Advantages of a High Voltage Doorknob Ceramic Capacitor?
In high voltage ceramic capacitors application field, requiring a small, high voltage and high frequency characteristics. With the progress of materials, electrodes and manufacturing technology, great progress has been made in the development of high voltage ceramic capacitors, and has been widely used. High voltage ceramic capacitors have become an indispensable component of high power high voltage electronic products.
