AnXon CT81 6KV 2200PF 6KV 222 High Voltage Lead Wire Disc Ceramic Capacitor
Model Number:CT81
Type:CERAMIC CAPACITOR
Place of Origin:Zhejiang, China
Brand Name:AnXon
Package Type:Through Hole
Rated Voltage:6KVDC, 6KVDC
Operating Temperature:-40 ~ +85
Application:Hight Voltage
Capacitance:2200PF, 2200pF
Name:Ceramic capacitor
Material:Y5T
Capacitance tolerance:10%(K)
Shape:Round disc
Terminal:Lead Wire
Color:Blue Coated
Brand:AnXon
Certificate:RoHS/CE/ISO9000

Contact: *
Company: MSN/skype:
Subject:
Tel: Fax:
E-mail: * Website:
Content: *
Code: *(marked *should be filled)

Description
 Product Description

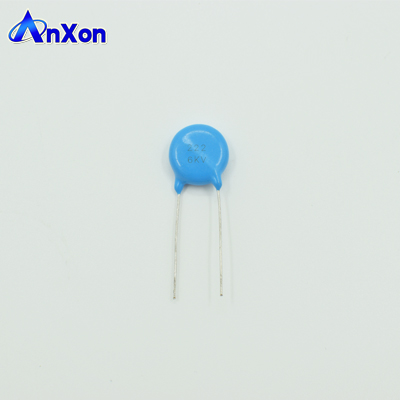

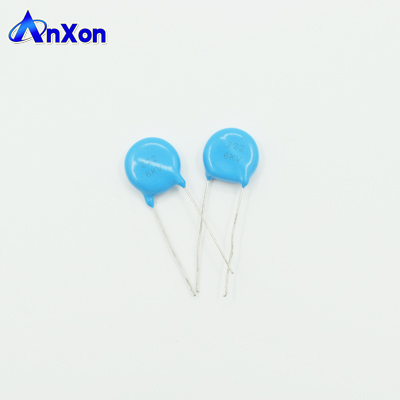

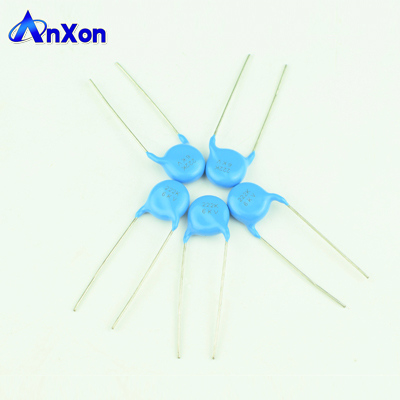

6KV 2200PF 222 Radial Lead Type High Voltage Ceramic Capacitor

High Voltage Ceramic Capacitor, Radial lead blue coating epoxy resin disc ceramic capacitor offered by AnXon Electronic, high quality ceramic capacitor supplier
Rated Spec:
6KV 2200PF,6KV 222
Tolerance:
K ±10%, J ±5% available on request
Type:
Radial leaded / disc / THT through hole mounting
Ceramic Dielectric :
Y5T
Operating Temperature:
-25°C to +85°C
Size / Dimension(ΦD×T*F):
D:14.5mm, T:5.0mm, F:10.0mm

High voltage ceramic capacitors are made of ceramic dielectric. The main features of high voltage ceramic capacitors is excellent withstand voltage. Used for various AC and DC high voltage circuit applications.

AnXon high voltage ceramic capacitors can be customized according to special requirements, take internal parallel or series design to achieve high voltage, large capacity, high operating frequency, high withstand impulse voltage, ultra low partial discharge requirements and other requirements can meet the different needs of customers.



Ultra High Voltage Ceramic Disc Capacitors

AnXon designs and manufactures high quality ultra high voltage disc ceramic capacitors with blue coating epoxy resin, custom design radial lead disc ceramic capacitors as well as a variety of standard and custom High Voltage & High Capacitance value Ceramic Capacitors.

• Rated Voltage (V): 1KVdc-50KVdc
• Capacitance Range: 10pF - 10000pF
• Operating frequency: 20KHZ-1000KHZ
• Materials: K100, K300, K2500, K3500, K5000, NPO, C0G, SL, N4700, Y5R, Y5S, Y5T, Y5P, Y5U, Y5V, Z5U, Z5V



More related specifications

Custom design radial lead disc ceramic capacitors are available from AnXon electronic, please contact us for details

Capacitor
code


Dielectric

Rated
Voltage
(kVdc)

 Capacitance

Dimensions (mm)
C (pF)
Tol (%)
D (max)
T (max)
F (max)
6KV 222
Y5T


6
2200
±10
14.5
5.0
10.0
6KV 332
Y5T
3300

±20
17.5
5.5
7.5
6KV 103
Y5V
10000
15.5
6.0
10.0
Products Application



High voltage capacitors are specially designed for high voltage applications, such as:

• DC-DC converters, Voltage multipliers,
• Radio and TV receiver, Modems, Interfaces, TV and monitors
• Other electrical appliances where high voltage is present
• High voltage power supplies, HV power supplies
• Electrostatic coating, Arc spray and sputtering, Electrostatic cleaning power supplies, Ion generator power sources
• X-ray equipment, medical machine

Quality Control



High voltage radial lead disc ceramic capacitor from AnXon are 100% tested of the below parameters

• Capacitance
• Dielectric withstanding voltage
• Dissipation Factor
• Insulation Resistance

Certifications
Our Company

Cixi AnXon Electronics Co., Ltd. has been committed to provide customers with proven, reliable and customized electronic components. After more than ten years of development, AnXon ceramic capacitor products have successfully replaced imported international brands AVX, TDK, Murata, Vishay also exports a large number of markets in North America, South America, Europe, Middle East and Southeast Asia.

Caution Notice



Caution (Rating)

1. Operating Voltage
When DC-rated capacitors are to be used in AC or ripple current circuits, be sure to maintain the Vp-p value of the applied voltage or the Vo-p which contains DC bias within the rated voltage range.When the voltage is applied to the circuit, starting or stopping may generate irregular voltage for a transit period because of resonance or switching. Be sure to use a capacitor with a rated voltage range that includes these irregular voltages.
2. Operating Temperature and Self-generated Heat

Keep the surface temperature of a capacitor below the upper limit of its rated operating temperature range. Be sure to take into account the heat generated by the capacitor itself. When the capacitor is used in a high frequency current, pulse current or similar current, it may self-generate heat due to dielectric loss. The applied voltage load should be such that the capacitor's self generated heat is within 10°C at an atmosphere temperature of 25°C.

Notice (Rating)
Capacitance change of capacitor
1. Class 1 capacitors
Capacitance might change a little depending on the surrounding temperature or an applied voltage. Please contact us if you intend to use this product in a strict time constant circuit.
2. Class 2 and 3 capacitors
Class 2 and 3 capacitors with temperature characteristics B, E and F have an aging characteristic, whereby the capacitor continually decreases its capacitance slightly if the capacitor is left on for a long time. Moreover, capacitance might change greatly depending on the surrounding temperature or an applied voltage. So, it is not likely to be suitable for use in a time constant circuit. Please contact us if you need detailed information.

contact us contact us
Contact us
Tel: +86-574-63301865
Fax: +86-574-63311826
