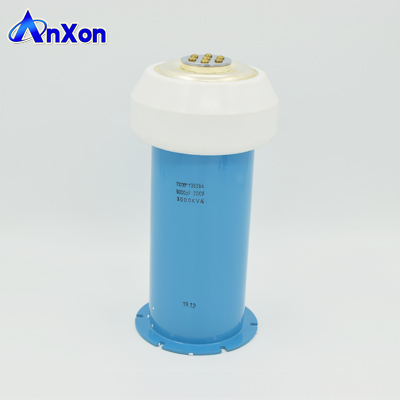

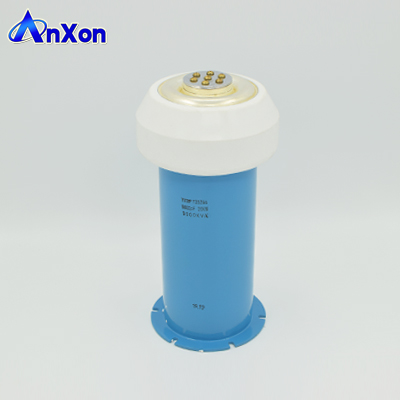

AnXon TWXF135285 20KV 5000PF 3000KVA RF Heating high power ceramic water cooled capacitor
Model Number:CCGSF Water Cooled Capacitor
Type:CERAMIC CAPACITOR
Place of Origin:Zhejiang, China
Brand Name:AnXon Water Cooled Capacitor, AnXon Water Cooled Capacitor
Package Type:Through Hole
Rated Voltage:20KV
Operating Temperature:-30°C ~ 85°C
Application:Power
Product name:Water Cooled High Power Ceramic Capacitor
Dielectric:R85, N750
Insulation Resistance:Min. 10000MΩ
Dissipation Factor:Max. 0.08% (1kHz 1V)
Temperature characteristics:-750PPM/°C
Capacitance:5000pF

Contact: *
Company: MSN/skype:
Subject:
Tel: Fax:
E-mail: * Website:
Content: *
Code: *(marked *should be filled)

Description
 Product Description

TWXF135285 20KV 5000PF 3000KVA water cooled tank capacitor

Cixi AnXon Electronic Co., Ltd is a leader in the design and manufacture of complex electronic ceramic components and assemblies used in a wide range of applications and cutting edge technologies. AnXon specializes in the development and production of dielectric and ferroelectric materials and components. This range of high voltage RF discs capacitors is fabricated from very low loss CLASS 1 ceramic dielectric materials which permit them to carry very high electrical loads over a wide frequency range.

Part No.
Spec.
Dimensions
D(mm)
H(mm)
H1(mm)
H2(mm)
d
TWXF095220
12KV 5000PF 1275KVA
95
220
18
110
7-M5
TWXF095162
14KV 1500PF 1000KVA
95
162
18
55
7-M5
TWXF095162
14KV 2000PF 1500KVA
95
162
18
55
7-M5
TWXF095162
14KV 2200PF 1500KVA
95
162
18
55
7-M5
TWXF095162
14KV 2500PF 1500KVA
95
162
18
55
7-M5
TWXF110250
14KV 4000PF 2000KVA
110
250
20
115
7-M5
TWXF110250
14KV 5000PF 2000KVA
110
250
20
115
7-M5
TWXF125300
14KV 7600PF 2500KVA
125
300
30
180
7-M5
TWXF125405
14KV 10000PF 2800KVA
125
405
30
280
7-M5
TWXF135218
16KV 4000PF 2500KVA
135
218
22
108
7-M5
TWXF135250
16KV 5000PF 2830KVA
135
250
22
128
7-M5
TWXF135272
16KV 6000PF 2830KVA
135
272
22
134
7-M5
TWXF095162
20KV 500PF 1000KVA
95
162
18
55
7-M5
TWXF110195
20KV 600PF 2000KVA
110
195
20
80
7-M5
TWXF110195
20KV 1000PF 2000KVA
110
195
20
80
7-M5
TWXF135242
20KV 2000PF 2000KVA
135
242
22
108
7-M5
TWXF135242
20KV 3000PF 2000KVA
135
242
22
108
7-M5
TWXF135285
20KV 5000PF 3000KVA
135
285
22
134
7-M5
TWXF135320
20KV 6000PF 3000KVA
135
320
22
170
7-M5
TWXF142285
24KV 4000PF 3000KVA
142
285
25
134
7-M5
TWXF142314
24KV 5000PF 3000KVA
142
314
25
134
7-M5
TWXF135242
25KV 2500PF 2500KVA
135
242
22
108
7-M5
CCGSF-4
30KV 5000PF 3500KVA
158
340
30
170
M10
Related Products

High frequency high power RF ceramic capacitors one stop solutions by AnXon

These capacitors are used in oscillators, coupling circuits or bypass capacitors in industrial or medical high frequency equipment. They are suitable to use as coupling capacitors for transmission line and carrier frequency equipment. X-ray equipment, broadcast equipment, induction heating power supplies (tube and solid state), cable fault finders, plasma generators, RF power supplies, dielectric heating, lasers and more.

Product Type

AnXon High frequency high power RF Watercooled ceramic capacitors Features

Low loss Class 1 ceramic dielectric materials
Noble metal electrodes with low self heating
Very low capacitance-temperature characteristics available
Correspondingly low tuned frequency drift.
Low Inductance construction, higher frequency use
High voltage, High Reactive Power Ratings
Low magnetic susceptibility

Product Application

AnXon High frequency high power RF watercooled ceramic capacitors Applications

Radio broadcast transmitters
HF filter, By-Pass & Coupling Circuits
High power matching tuned circuits, Antenna circuits
High power matching networks, Plasma Generators
High quality medical imaging systems (MRI)
Induction and Dielectric Heating Equipment
Industrial Applications

Quality Control

AnXon High frequency high power RF plate ceramic capacitors are 100% tested of the below parameters

• Capacitance
• Tolerance
• Dielectric withstanding voltage
• Dissipation Factor
• Insulation Resistance
Process and inspection data are maintained on file and available upon special request.

Certifications
