Tolerance:10%
Place of Origin: China
Brand Name: AnXon
Model Number:PEF200
Type: CERAMIC CAPACITOR
Package Type: Surface Mount
Rated Voltage:20KV
Operating Temperature:-30°C ~ 85°C
Application: RF / Microwave
Product name: RF Power plate capacitor
Part Number:PEF220
Voltage:20KV
Rated power:140KVA
Dielectric:R85, N750
Insulation Resistance: Min. 10000MΩ
Dissipation Factor: Max. 0.08% (1kHz 1V)
Temperature characteristics:-750PPM/°C
|

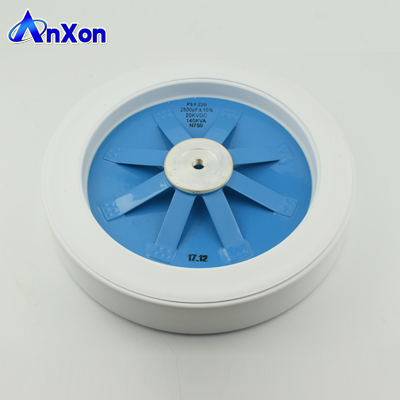

AnXon PEF220 20KV 2500PF 140KVA High frequency welding machine capacitor
Cixi AnXon Electronic Co., Ltd is a leader in the design and manufacture of complex electronic ceramic components and assemblies used in a wide range of applications and cutting edge technologies. AnXon specializes in the development and production of dielectric and ferroelectric materials and components. This range of high voltage RF discs capacitors is fabricated from very low loss CLASS 1 ceramic dielectric materials which permit them to carry very high electrical loads over a wide frequency range.
High frequency high power RF ceramic capacitors one stop solutions by AnXon
These capacitors are used in oscillators, coupling circuits or bypass capacitors in industrial or medical high frequency equipment. They are suitable to use as coupling capacitors for transmission line and carrier frequency equipment. X-ray equipment, broadcast equipment, induction heating power supplies (tube and solid state), cable fault finders, plasma generators, RF power supplies, dielectric heating, lasers and more.
AnXon High frequency high power RF plate ceramic capacitors Features
Low loss Class 1 ceramic dielectric materials
Noble metal electrodes with low self heating
Very low capacitance-temperature characteristics available
Correspondingly low tuned frequency drift.
Low Inductance construction, higher frequency use
High voltage, High Reactive Power Ratings
Low magnetic susceptibility
AnXon High frequency high power RF plate ceramic capacitors Applications
Radio broadcast transmitters
HF filter, By-Pass & Coupling Circuits
High power matching tuned circuits, Antenna circuits
High power matching networks, Plasma Generators
High quality medical imaging systems (MRI)
Induction and Dielectric Heating Equipment
Industrial Applications
AnXon High frequency high power RF plate ceramic capacitors are 100% tested of the below parameters
• Capacitance
• Tolerance
• Dielectric withstanding voltage
• Dissipation Factor
• Insulation Resistance
Process and inspection data are maintained on file and available upon special request.
Cixi AnXon Electronic Co., Ltd, A China based manufacturing company, specialized manufacturer and supplier of high voltage ceramic capacitors, doorknob capacitors, pulse power capacitors, RF power capacitors, AC live line capacitors, high Q capacitors, high temperature capacitors.
Main Products:
1). High Voltage Disc Ceramic Capacitors
HV ceramic disc capacitors, ultra hv screw doorknob capacitors, AC live line capacitors, Voltage Multiplier Assembly, Ceramic capacitor stacks, Pulse power capacitors, high voltage AC ceramic capacitors
2). RF power ceramic capacitors,
Disk / plate capacitors, Water cooled power capacitors, Feedthrough RF capacitors, Tubular ceramic capacitors
3). High Q power ceramic capacitors
High Q multilayer capacitors, RF / Microwave Multilayer Capacitors, High Q MLCC
4). High Voltage Chip SMD Ceramic Capacitors, High Voltage MLCC
250V, 500V, 1000V 1KV, 1500V, 2000V 2KV, 2500V, 3000V 3KV, 4000V 4KV, 5000V 5KV, 6000V, 6KV, 7000V, 7KV, 8000V, 8KV, 9000V, 9KV 10KV HV MLCC
5). High temperature Chip SMD ceramic capacitors, High temperature MLCC
125°C, 150°C, 175°C, 200°C, 250°C, 300°C Radial Leaded High Voltage Ceramic Capacitors, HV MLCC
125C, 150C, 175C, 200C, 250C, 300C High Voltage Multilayer Chip SMD Uncoated Ceramic Capacitors MLCC with lead
