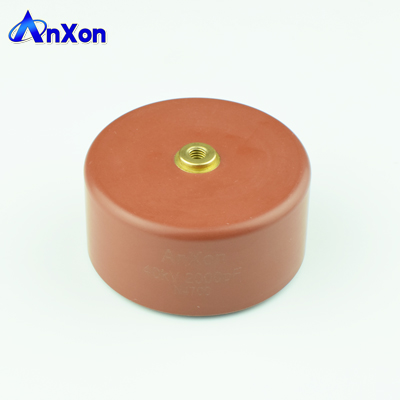

AnXon 40KV 2200PF 2.2nF N4700 SrTiO3 ceramics HV Capacitor
Rated Voltage:40KVDC
Rated Capacitance:2200PF
Test Voltage: 60KVDC 60s
Size:D70mm x H35mm, M5, Customized available on request
Dielectric: N4700 SrTiO3 ceramics
Brand: AnXon AXC
P/N: AXCT8G40DL222KDB

Contact: *
Company: MSN/skype:
Subject:
Tel: Fax:
E-mail: * Website:
Content: *
Code: *(marked *should be filled)

Description



AnXon 40KV 2200PF 2.2nF N4700 SrTiO3 ceramics HV Capacitor

1. Description

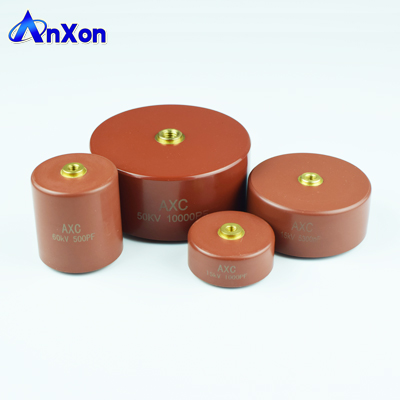

AnXon CT8G series Cylindrical ultra high voltage doorknob ceramic capacitors have excellent charge and discharge performance, high withstand voltage, good frequency characteristics, can withstand high impulse voltage, ultra low partial discharge characteristics, and AC and DC applications for customers to choose.

• Excellent behavior on pulse and fast discharge conditions
• Low dissipation factor, 0.05% low loss design available on request
• Very low partial discharge, as low as 1PC available
• Ultra low temperature properties, ±0.5% temperature vs capacitance available
• Ultra high frequency, very stable, up to 30Mhz operating frequency
• Excellent voltage characteristic, 200kV withstand available
• Molded type, Screw or Axial Leads available, small size design available
• Coated and uncoated devices available, customized high voltage capacitor banks available


2. General Specifications

Rated voltage

40kVdc

Capacitance

2200pF, 2.2nF, 222

Capacitance tolerance

Standard: ±10%, ±1% available

AC test voltage

40kVac

Withstand voltage test

1.5 times of rated voltage

Lightening impulse voltage test

Custom design available

Operating frequency

Max 1.0Mhz

Dissipation factor

Max 0.1%

Partial discharge

Min 1PC available on request

Temperature properties

+22/-33%

Operating temperature range

 -35°C to +85°C



3. Applications

The main applications include live line indicators, AC dividers, grading systems for power distribution network, protection for HV switches and power circuit breakers. Coupling, by-passing high frequency circuits also use HV ceramic disc capacitors. Laser pulses circuitry, high energy/high voltage test equipment(HV accelerators, physics research) require products especially adapted to their specific requirements.

• High voltage supply for gas laser
• High-voltage dividers
• Marx generators, Power generators
• High voltage columns for collider of HV accelerator
• High-voltage coupling devices
• Power line coupling system for Internet & Telecom
• Lightning arresters, voltage distribution systems
• HV Power Supply for X-ray, excimer lasers




4. Quality Control


High voltage doorknob ceramic capacitor from AnXon are 100% tested of the below parameters

• Capacitance
• Tolerance
• Dielectric withstanding voltage
• Dissipation Factor
• Insulation Resistance
• Partial discharge: as requested
• Lightening impulse voltage: sampling



5. Company


Cixi AnXon Electronic Co., Ltd is a leader in the design and manufacture of complex electronic ceramic components and assemblies used in a wide range of applications and cutting edge technologies. Specialized manufacturer and supplier of high voltage ceramic capacitors, doorknob capacitors, pulse power capacitors, RF power capacitors, AC live line capacitors, high Q capacitors, high temperature capacitors.
Main Products:
1). High Voltage Disc Ceramic Capacitors
HV ceramic disc capacitors, ultra hv screw doorknob capacitors, AC live line capacitors, Voltage Multiplier Assembly, Ceramic capacitor stacks, Pulse power capacitors, high voltage AC ceramic capacitors
2). RF power ceramic capacitors,
Disk / plate capacitors, Water cooled power capacitors, Feedthrough RF capacitors, Tubular ceramic capacitors
3). High Q power ceramic capacitors
High Q multilayer capacitors, RF / Microwave Multilayer Capacitors, High Q MLCC
4). High Voltage Chip SMD Ceramic Capacitors, High Voltage MLCC
250V, 500V, 1000V 1KV, 1500V, 2000V 2KV, 2500V, 3000V 3KV, 4000V 4KV, 5000V 5KV, 6000V, 6KV, 7000V, 7KV, 8000V, 8KV, 9000V, 9KV 10KV HV MLCC
5). High temperature Chip SMD ceramic capacitors, High temperature MLCC
125°C, 150°C, 175°C, 200°C, 250°C, 300°C Radial Leaded High Voltage Ceramic Capacitors, HV MLCC
125C, 150C, 175C, 200C, 250C, 300C High Voltage Multilayer Chip SMD Uncoated Ceramic Capacitors MLCC with lead






6. Advantage

AnXon provide high quality replacements of the famous brand AVX, Murata, TDK, VISHAY, HVCA, CKE, MTC, Morgan Ceramics and etc with great success experience of customers
Such as
AVX HP / HW / HK / HD / HE Series N4700 Dielectric High Voltage Ceramic Doorknob Capacitors
EPCOS TDK TSF / H / GA / FD / MD / UHV / FHV Series Z5T, Y5S, Z5U, Y5P Dielectric Ultra high Voltage Ceramic Capacitor
Murata DHS Series N4700 Z5V Dielectric Mold Type High Voltage Ceramic Doorknob Capacitors
