Description

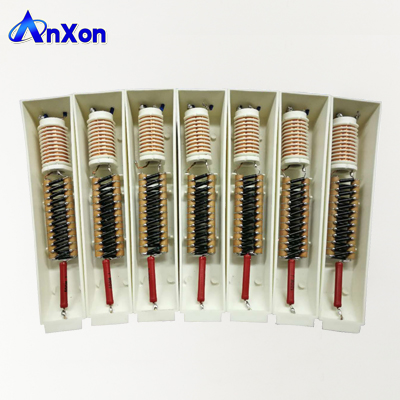

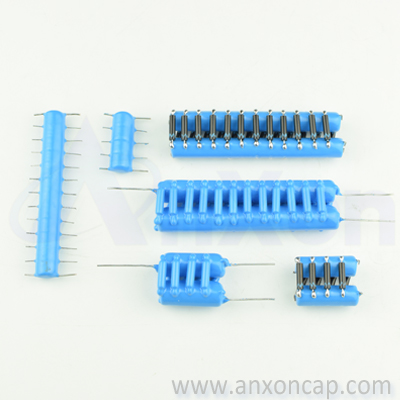

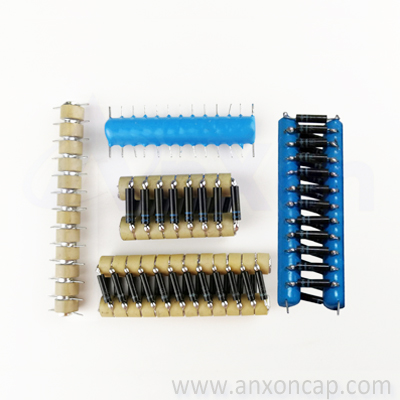

AnXon high voltage multiplier assembly module stacks with diode



Specifications



1, Multiple designs up to 12 stages
2, Voltage ratings of the individual discs from 8 kVdc to 30 kVdc
3, Capacitance ratings of the individual discs from 100pF to 2400pF
4, Stacks with diodes, Other versions on request
5, Small size, Lead (Pb)-free version on request

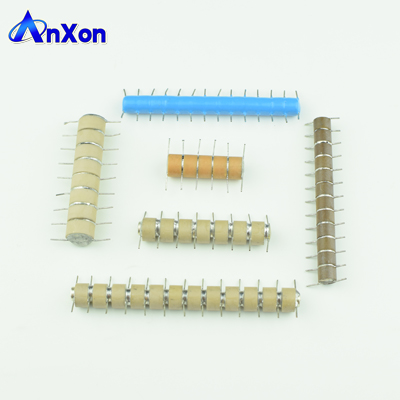

AnXon provide high quality customized ceramic capacitor stacks and High Voltage Ceramic Capacitor Multiplier Sets, Please see below table to select our standard parts.



All the capacitance, voltage, number of stacks, diodes specs can be as your request,



Individual

discs

Capacitance

Individual

discs

Voltage

Number of

Stacks

Ceramic

Dielectric

Diode

for Multiplier

100pF





8kV



10kV



12kV



15kV



20kV



25kV



30kV



others







4 stacks



5 stacks



6 stacks



8 stacks



10 stacks



12 stacks



others











N4700



Y5T



Y5U



others







2CL73 12kV 5mA



2CL74 14kV 5mA



2CL75 16kV 5mA



2CL76 18kV 5mA



2CL77 20kV 5mA



JB99T 20kV 20mA



HVRT150 15kV 30mA



HVRT200 20kV 30mA



others

150pF

220pF

250pF

280pF

310pF

330pF

350pF

470pF

500pF

1000pF

2200pF

2400pF





Products Application

Ceramic capacitor stacks have been developed for use in low power voltage multipliers used in high voltage DC generators. The major applications are x-ray equipment for medical diagnostics or electrostatic paint spraying equipment.



HV Voltage Multiplier Unit Application Guide
The major applications are x-ray equipment for:
• Medical diagnosis
• Dentistry x-ray application
• Industrial x-ray for material control
• Airport security x-ray scanner
• Low power voltage multipliers
• High voltage DC generators.
• X-ray equipment for medical diagnostics
Electrostatic paint spraying equipment.





Quality Control

High voltage radial lead disc ceramic capacitor from AnXon are 100% tested of the below parameters

• Capacitance
• Dielectric withstanding voltage
• Dissipation Factor
• Insulation Resistance



Certifications
