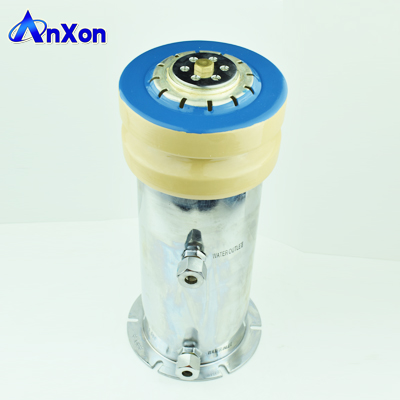

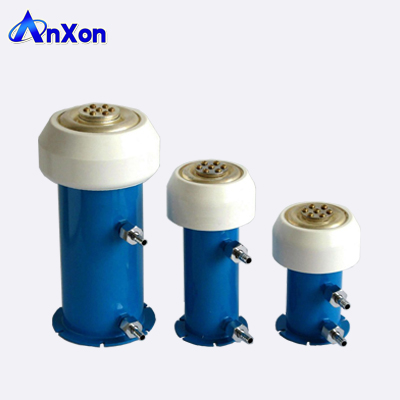

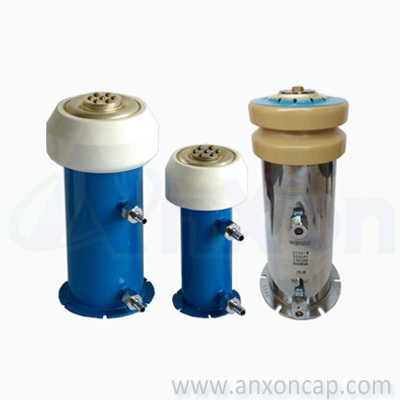

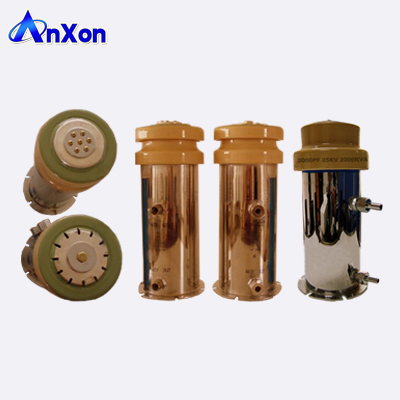

AnXon CCGS CCGSF TWXF Watercooled Power RF Capacitor
1. Water cooled capacitor voltage range:12kVdc--30kVdc
2. Water cooled capacitor capacitance range:1500pF--10000pF
3. Water cooled capacitor RF power range:1000KVA--3500KVA
4. Dissipation factor<=0.0008
5. Insulation resistance>=10000 MΩ
6. Capacitance tolerance:K(+/-10%)
7. Temperature Coefficient:-750PPM/ ℃
8. Ceramic dielectric:R85, N750
9. Test voltage:Rated voltage <=15KV, 200% of rated voltage, rated voltage>15K,150% of rated voltage
10. Capacitor series:CCGS, CCGSF, TWXF

Contact: *
Company: MSN/skype:
Subject:
Tel: Fax:
E-mail: * Website:
Content: *
Code: *(marked *should be filled)

Description

AnXon CCGS CCGSF TWXF Watercooled Power RF Capacitor




Product Description


Cixi AnXon Electronic Co., Ltd is a leader in the design and manufacture of complex electronic ceramic components and assemblies used in a wide range of applications and cutting edge technologies. AnXon specializes in the development and production of dielectric and ferroelectric materials and components. This range of high voltage RF discs capacitors is fabricated from very low loss CLASS 1 ceramic dielectric materials which permit them to carry very high electrical loads over a wide frequency range.






1. Water cooled capacitor voltage range12kVdc--30kVdc, 12KV, 14KV, 16KV, 20KV, 24KV,25KV, 30KV

2. Water cooled capacitor capacitance range1500pF--10000pF, 1500PF, 2000PF, 2500PF, 3000PF,4000PF, 4700PF, 5000PF, 6000PF, 7600PF, 10000PF

3. Water cooled capacitor RF power range:1000KVA--3500KVA, 1000KVA, 1275KVA, 1500KVA, 2000KVA, 2500KVA, 2800KV,2830KVA, 3000KVA, 3500KVA

4. Dissipation factor<=0.0008;

5. Insulation resistance>=10000 MΩ;

6. Capacitance tolerance:K(+/-10%);

7. Temperature Coefficient:-750PPM/ ℃

8. Ceramic dielectric:R85, N750

9. Test voltage:Rated voltage <=15KV, 200% of rated voltage, rated voltage>15K,150% of rated voltage

10. Capacitor series:CCGS, CCGSF, TWXF





P/N

Rated Spec

Max

Current

Size(mm)

Cross VISHAY

P/N

(A)

D

H

h1

h2

d

CCGSF-0

14KV 1500PF 1000KVA

150

095

162

18

55

7-M5

TWXF095162

14KV 2000PF 1500KVA

14KV 2200PF 1500KVA

14KV 2500PF 1500KVA

12KV 5000PF 1275KVA

220

110

TWXF095220

14KV 4000PF 2000KVA

250

115

TWXF110250

14KV 5000PF 2000KVA

14KV 4700PF 2000KVA

14KV 7600PF 2500KVA

250

125

300

30

180

TWXF125300

14KV 10000PF 2800KVA

250

125

405

30

280

TWXF125405

CCGSF-2

20KV 2000PF 2000KVA

250

135

242

22

108

TWXF135242

25KV 2500PF 2500KVA

20KV 3000PF 2000KVA

16KV 4000PF 2500KVA

218

TWXF135218

16KV 5000PF 2830KVA

250

128

TWXF135250

20KV 5000PF 3000KVA

285

134

TWXF135285

16KV 6000PF 2830KVA

272

134

TWXF135272

20KV 6000PF 3000KVA

320

170

TWXF135320

CCGSF-3

24KV 4000PF 3000KVA

250

142

285

25

134

TWXF142285

24KV 5000PF 3000KVA

314

TWXF142314

25KV 5000PF 3000KVA

TWXF142314

CCGSF-4

30KV 5000PF 3500KVA

250

158

340

30

170







Related Products





High frequency high power RF ceramic capacitors one stop solutions by AnXon


These capacitors are used in oscillators, coupling circuits or bypass capacitors in industrial or medical high frequency equipment. They are suitable to use as coupling capacitors for transmission line and carrier frequency equipment. X-ray equipment, broadcast equipment, induction heating power supplies (tube and solid state), cable faultfinders, plasma generators, RF power supplies, dielectric heating, lasers and more.

MainProducts:

1. RF Powerplate disk Capacitor: CCG81,DT60,DT80,DT110,DT120,DT140,DT150,DT160,PE100,PE140,PEZ140,PE200,PE220,PD70,PD80,PEF220 series.

2. RF Powerwater cooled capacitor: CCGS, CCGSF, TWXF series

3. CCG5Tubular Cylindrical shape RF power capacitor

4. CCG11high power ceramic capacitor

5. CCG61 RFpower ceramic capacitor

6. CCG10Ahigh voltage high power ceramic capacitor

7. FT, DB,DF, TD RF Power Feed-Through Capacitor

9. Type02,Type03 RF power Tubular Cylindrical shape capacitor








Product Type


AnXon High frequency high power RF plate ceramic capacitors Features


Low lossClass 1 ceramic dielectric materials

Noble metalelectrodes with low self heating

Very lowcapacitance-temperature characteristics available

Correspondinglylow tuned frequency drift.

LowInductance construction, higher frequency use

Highvoltage, High Reactive Power Ratings

Low magnetic susceptibility








Product Application


AnXon High frequency high power RF plate ceramic capacitors Applications


Radio broadcast transmitters
HF filter, By-Pass & Coupling Circuits
High power matching tuned circuits, Antenna circuits
High power matching networks, Plasma Generators
High quality medical imaging systems (MRI)
Induction and Dielectric Heating Equipment
Industrial Applications
