Description

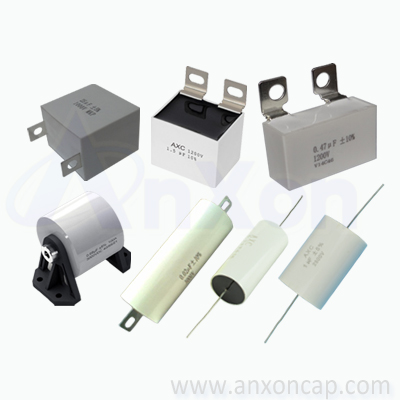

 CT15 Series Snubber Capacitors 700VDC-3000VDC



Features

Widely used in high voltage, high frequency pulse circuit

Lower ESR & ESL, Self-healing property

Long life time, Small inherent temperature rise

High dV/dt, High ripple current capabilities

Very low dissipation factor

Double-Sided Metallized Electrodes



Applications

Especially as snubber capacitor for IGBT

Welders, inverters, UPS,EPS

Induction heating machine



Technical Specifications



  Specifications

  Reference value



  Reference standards

  IEC 61071, GB/T 17702-2013



  Rated voltage

  700VDC-3000VDC



  Rated capacitance

  0.047μF-10μF (±5, ±10%)



  Working temperature range

  -40+85



  Storage temperature range

  -40+85



  Test voltage between terminals

  1.5Un 10s(25±5)



  Test voltage terminals to case

  Un≤1300V,3000VAC (10s,50Hz)
  Un
1300V,1.5Un+1000VAC (10s,50Hz)



  Dielectric dissipation factor

  4.0x10-4 Cn≤1.0μF, 6.0x10-4 Cn1.0μF (10KHz,25)



  Life expectancy

  100,000 hours Θmax(hotspot)≤+70



  Insulation Resistance

  ≥1 x 105 MΩ Cn≤0.33μF ,
  Cn x Ri ≥30 000 sec Cn
0.33μF  (100V/1 min 25)
