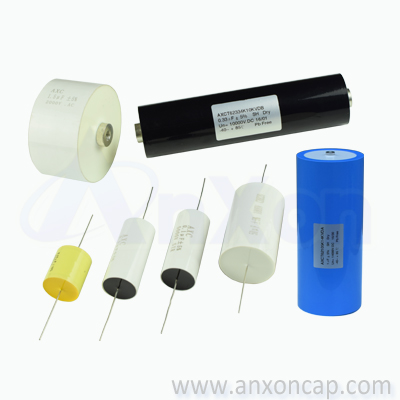

 CT20 Series High Voltage Film Capacitors 3kVdc-30kVdc



Features

Metallized polypropylene/polyester film, Non inductive

Excellent self-healing property and temperature stability

Polyester tape or specific tape wrap, epoxy resin filled

Copper tinned wire & tabs, female & male screw terminals

Dry type, Compact size products available on request



Applications

High voltage power supply

High voltage converter

High voltage coupling devices

Voltage multipliers

High voltage pulse discharges



Technical Specifications

  Specifications

  Reference value

  Reference standards

  GB/T 2693 idt IEC 60384-1

   Rated voltage

  3kVdc-30kVdc/1kVac-10kVac

  Rated capacitance

  0.0068μF-20μF (±5, ±10%)

  Working temperature

  -40℃~+85℃[Θmax(hotspot)+85℃]

  Storage temperature

  -40℃~+85

  Test voltage between terminals

  1.5Un (10s @20±5°C)

  Dielectric dissipation factor

  4.0x10-4 Cn1.0μF
  6.0x10-4 Cn
1.0μF (10KHz,25)

  Life expectancy

  100,000 hours Θmax(hotspot)+70℃]

  Insulation Resistance

  1 x 105 MΩ Cn0.33μF ,
  Cn x Ri
30 000s Cn0.33μF  (100V/1 min 25)
