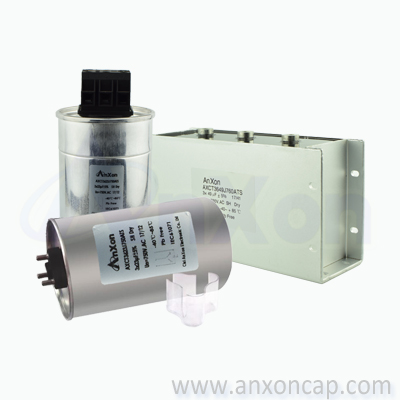

CT36 Series, Three-phase AC Filter Capacitor 400VAC-1400VAC
Three-phase AC Filter Capacitor
AC Filter Capacitor
Metallized polypropylene film capacitor

Contact: *
Company: MSN/skype:
Subject:
Tel: Fax:
E-mail: * Website:
Content: *
Code: *(marked *should be filled)

Description
 CT36 Series, Three-phase AC Filter Capacitor 400VAC-1400VAC



Features

Metallized polypropylene film, Non inductive

Low self-inductance, Excellent self-healing property

Low loss, Small inherent temperature rise

Compact size, Long life time

Three-phasedry type, metal case filled with resin



Applications

Used in AC filter circuits, improve power factor

Power electronics equipments, UPS power supply

Wind power and Solar power



Technical Specifications

Specifications

Reference value

Rated voltage

  400VAC-1400VAC

Rated capacitance

  3x9μF-3x500μF (±5, ±10%)

Working & Storage temperature

  -40℃~+85

Test voltage between terminals

  1.5Urms (50HZ , 10s @20±5°C)

Test voltage terminals to case

  Upeak1300V,3000VAC (10s,50Hz)
Upeak>1300V,1.5Upeak+1000VAC         (10s,50Hz)

Dielectric dissipation factor

  2x10-3 @100Hz,25±5

Life expectancy

  100,000 hours Θmax(hotspot)+70℃]

Insulation Resistance

  10 000s (25,100V, 1min)

Maximum working altitude

  2000m

Cooling mode

  Natural cooling

Internal connection

  triangle connecting
