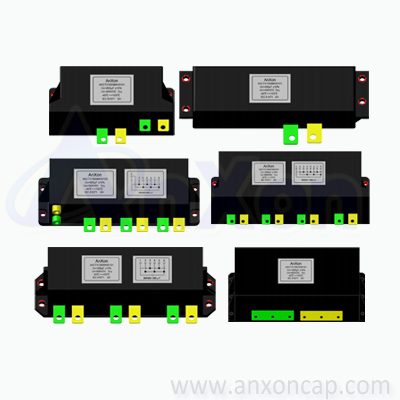

CT31 Series Capacitors for DC Link 400VDC-900VDC



Features

High temperature metallized polypropylene film dielectric

Excellent self-healing performance

Low ESR, high ripple current handling capabilities

Low self -inductance, Wide range working temperature, long life time

Plastic case filled resin, internal bus bars design

Used in DC Link circuits as filtering or energy storage



Applications

Hybrid / Electric Vehicles

EV/HEV Inverter Modules

Motor Drives

Variable speed drive



Technical Specifications



Specifications

Reference value

Reference standards

IEC 61071:2007, GB/T 17702, AEC Q200D-2010

Climatic category

40/105/56

Working temperature range

-40℃~+105℃[Θmax(hotspot)+105℃]

Storage temperature range

-40℃~+105

Rated voltage

400VDC-900VDC

Rated capacitance

280μF-2000μF

Capacitance tolerance

±5%J,±10%K

Test voltage between terminals

1.5Un 10s(25±5)

Test voltage terminals to case

3000VAC 60s(50Hz,25±5)

Dielectric dissipation factor

2x10-4 @100Hz,25±5

Equivalent series resistance (ESR)

0.3mΩ1.0mΩ10kHz

Self inductance(ESL)

10nH40nH

Maximum RMS current

100A300A

Maximum peak current

2kA8kA

Overvoltage protection

1.1Un: 30% of the service period

1.15Un: 30min/day

1.2Un: 5min/day

1.3Un: 1min/day

1.5Un: 30ms,1000 times during the life

Life expectancy

15,000 小时 hours, refer to corresponding curve

Failure rate

50 FIT

Self discharge time constant

C x Ris 10 000s (25,500VAC)

Maximum torque of terminals

4.5Nm

Maximum torque of mounting tabs

8.5Nm

Maximum working humidity

65,93% RH

Maximum altitude without derating

2000m

Mounting mode

Arbitrary direction

Outline type

custom products on request
