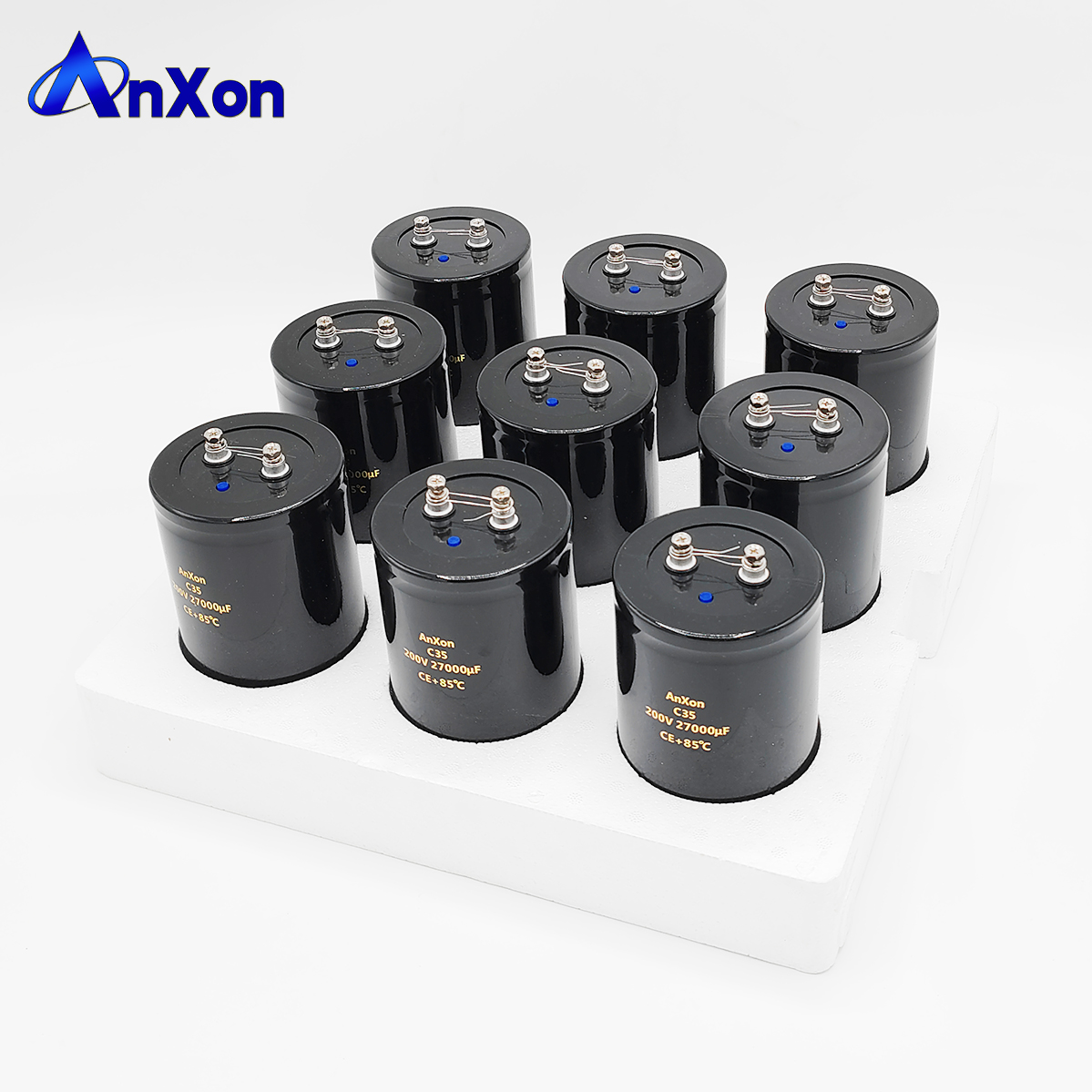

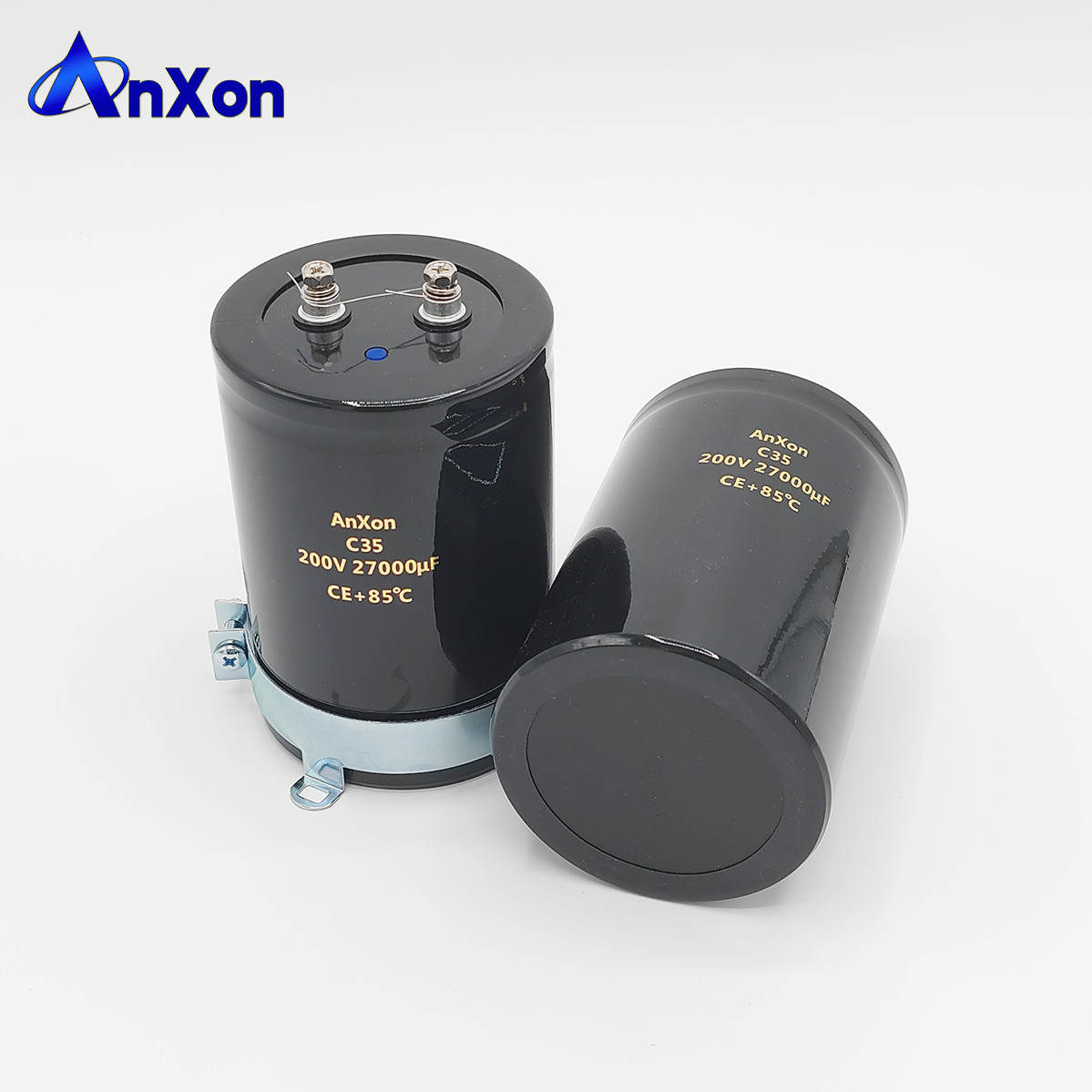

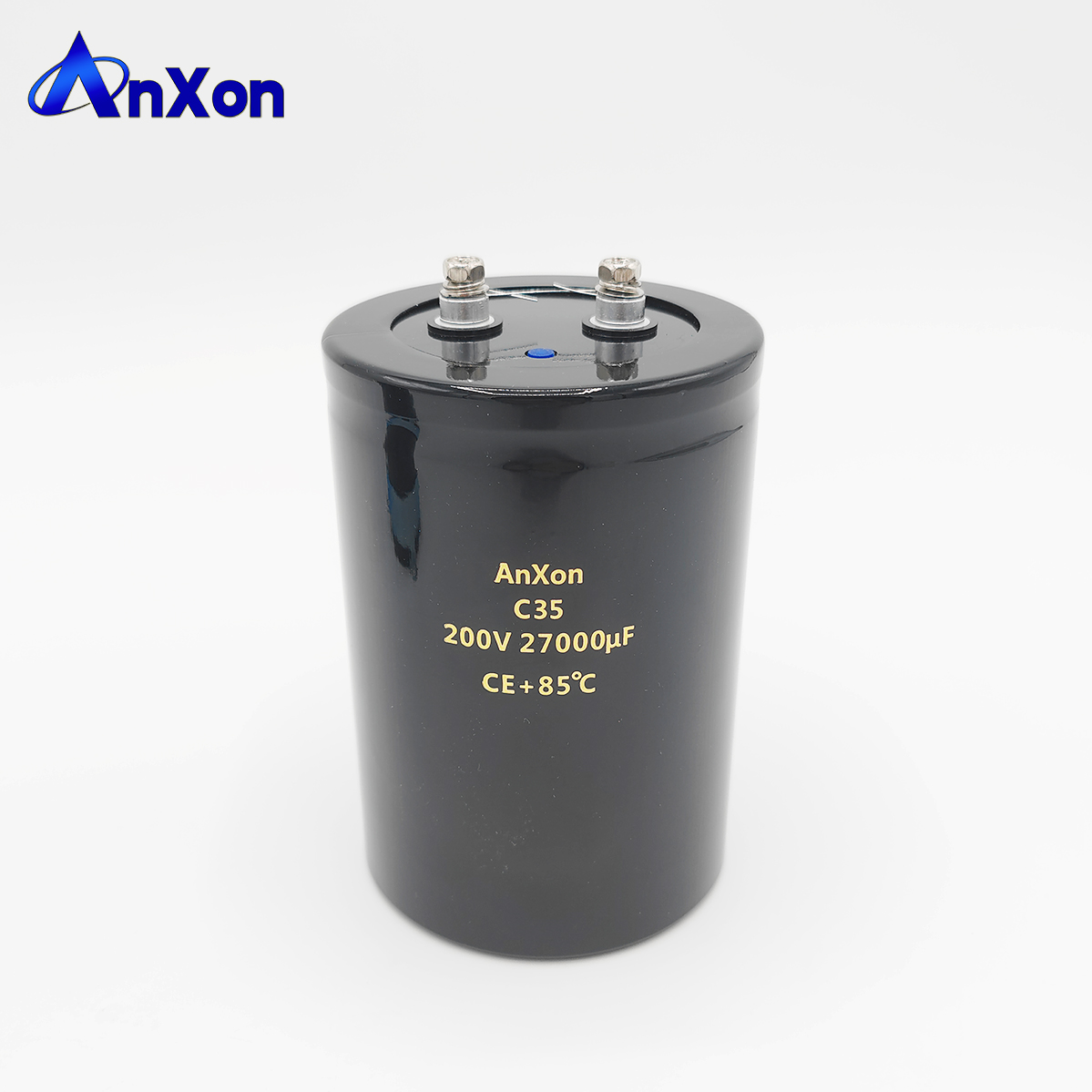

AnXon 200V 27000UF Screw Terminals Aluminum Electrolytic Capacitor 200V 27000MFD

Home > Products > Electrolytic Capacitor > Screw Terminals Electrolytic Capacitor >

Place of Origin: Zhejiang, China
Brand Name: AnXon
Description: Aluminum Electrolytic Capacitor
Voltage: 200V
Capacitance: 27000UF
Capacitance tolerance: ±20%
Size / Dimension: D90xL130mm
Surge Voltage: 250V
ESR (Equivalent Series Resistance): 4.0 mΩ
Leakage Current: 5.0mA
Rated Ripple Current: 21.6A
Operating Temperature: -40~+85℃
Media Available: Datasheet & Photo

Description

Products Description

AnXon 200V 27000UF Screw Terminals Aluminum Electrolytic Capacitor 200V 27000MFD

Screw terminal aluminum electrolytic capacitor 200V 27000uF, Screw type Large can aluminum electrolytic capacitor 200V, 200V 27000MFD Bolt type Electrolytic Capacitor, 200V 27000uF 2000 hours 85℃ electrolytic capacitor offered by AnXon Electronic

Rated Spec:	200V 27000uF, 200V 27000MFD
Tolerance:	M, ±20%
Type:	Screw terminal, Large can, Bolt type
Load life :	2000 hours at 85℃
Operating Temperature:	-40℃ ~ +85℃
Size / Dimension(ΦD×L):	D: 90mm, L: 130mm

Our Advantage :

1. Short lead time, quick delivery
2. Low cost price , great quality
3. 100% convinced by world class customers
4. Custom case size capacitor available

Screw Terminal Large Can Aluminum Electrolytic Capacitor Application Guide

• UPS, Industrial power supply
• Frequency converters, Wind power converters
• Switch-mode power supplies
• Solar inverters
• Professional power supplies

Aluminum Electrolytic Capacitors with screw terminals 10V, 16V, 25V, 35V, 50V, 63V, 80V, 100V, 160V, 200V, 250V, 350V, 400V, 450V
200V Informations

Series	Spec.	Cap Code	Dimension(mm)		Load life
Series	Spec.	Cap Code	D	L	Load life
C35	200V 3300UF	332	50	80	85℃ 2000 hours
	200V 3900UF	392	50	80
	200V 4900UF	492	64	140
	200V 8200UF	822	64	120
	200V 10000UF	103	64	100
	200V 10000UF	103	76	120
	200V 15000UF	153	76	140
	200V 20000UF	203	76	140
	200V 22000UF	223	76	143
	200V 27000UF	273	90	130
	200V 33000UF	333	89	155
