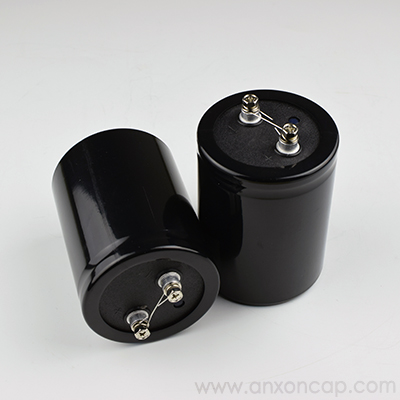

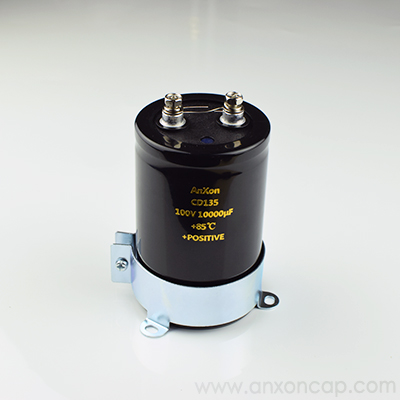

Made in China 100V 10000UF Screw Terminals Aluminum Electrolytic Capacitor 100V 10000MFD

Home > Products > Electrolytic Capacitor > Screw Terminals Electrolytic Capacitor >

Place of Origin: Zhejiang, China
Brand Name: AnXon
Description: Aluminum Electrolytic Capacitor
Voltage: 100V
Capacitance: 10000UF
Capacitance tolerance: ±20%
ESR (Equivalent Series Resistance): 8.0 mΩ
Operating Temperature: -25~+85℃
Media Available: datasheet & Photo

Description

Products Description

Made inChina 100V 10000UF Screw Terminals Aluminum Electrolytic Capacitor 100V 10000MFD

Screw terminal aluminum electrolytic capacitor 100V 10000uF, Screw type Large can aluminum electrolytic capacitor 63V, 63V 10000MFD Bolt type Electrolytic Capacitor, 100V 10000uF 500 hours 85℃ electrolytic capacitor offered by AnXon Electronic

Rated Spec:	100V 10000uF, 100V 10000MFD
Tolerance:	M, ±20%
Type:	Screw terminal, Large can, Bolt type
Load life :	500 hours at 85℃
Operating Temperature:	-25℃ ~ +85℃
Size / Dimension(ΦD×L):	D: 50mm, L: 80mm

Our Advantage :

1. Short lead time, quick delivery
2. Low cost price , great quality
3. 100% convinced by world class customers
4. Custom case size capacitor available

Screw Terminal Large Can Aluminum Electrolytic Capacitor Application Guide

• UPS, Industrial power supply
• Frequency converters, Wind power converters
• Switch-mode power supplies
• Solar inverters
• Professional power supplies

Aluminum Electrolytic Capacitors with screw terminals 10V, 16V, 25V, 35V, 50V, 63V, 80V, 100V, 160V, 200V, 250V, 350V, 400V, 450V
63V Informations

Series	Spec.	Cap Code	Dimension(mm)		Load life
Series	Spec.	Cap Code	D	L	Load life
C94	100V 3300UF	332	35	80	105℃ 2000 hours
	100V 4700UF	472	35	50
	100V 6800UF	682	35	60
	100V 6800UF	682	50	80
	100V10000UF	103	50	80

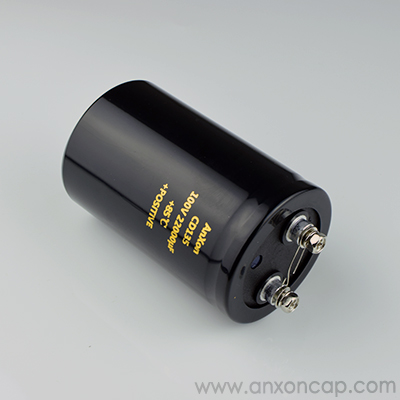

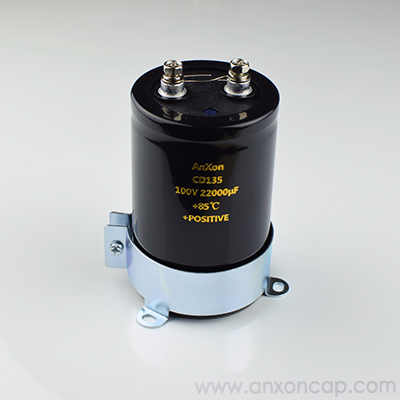

	100V 22000UF	223	50	80
	100V 22000UF	223	64	100
	100V 33000UF	333	64	120
	100V 47000UF	473	64	120
	100V 47000UF	473	76	100
	100V47000UF	473	76	130
	100V 100000UF	104	89	155
	100V 100000UF	104	76	180
