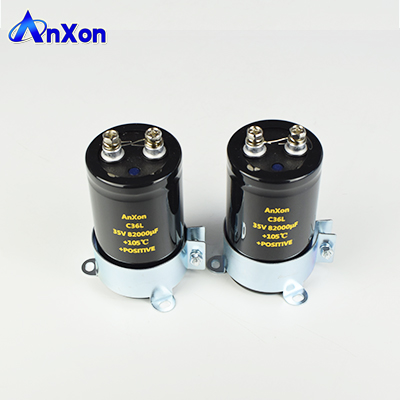

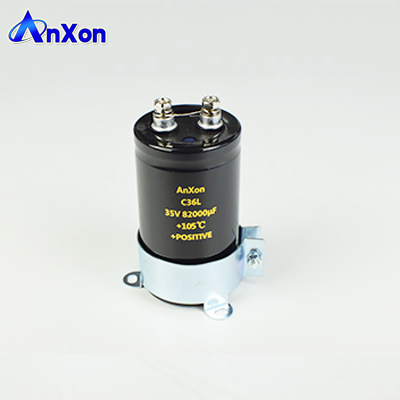

Made in China 35V 82000uF Screw Terminals Aluminum Electrolytic Capacitor 35V 8200MFD
Model Number: C36L Aluminum electrolytic capacitor
Type: Aluminum Electrolytic Capacitor
Place of Origin: Zhejiang, China
Brand Name: AnXon Aluminum electrolytic capacitor
Capacitance: 82000UF
Media Available: datasheet, Photo
Package Type: Through Hole
Rated Voltage: 35V
Operating Temperature: -40C ~ +85C
ESR (Equivalent Series Resistance): 8.0 mΩ
Application: General Purpose, General Purpose

Contact: *
Company: MSN/skype:
Subject:
Tel: Fax:
E-mail: * Website:
Content: *
Code: *(marked *should be filled)

Description
Products Description

Made in China 35V 82000uF Screw Terminals Aluminum Electrolytic Capacitor 35V 82000MFD

Screw terminal aluminum electrolytic capacitor 35V 82000uF, Screw type Large can aluminum electrolytic capacitor 35V, 35V 82000MFD Bolt type Electrolytic Capacitor, 35V 82000uF 500 hours 105C electrolytic capacitor offered by AnXon Electronic
Rated Spec:
35V 82000uF, 35V 82000MFD
Tolerance:
M, ±20%
Type:
Screw terminal, Large can, Bolt type
Load life :
500 hours at 105℃
Operating Temperature:
-40℃ ~ +85℃
Size / Dimension(ΦD×L):
D: 50mm, L: 92mm

Our Advantage :

1. Short lead time, quick delivery
2. Low cost price , great quality
3. 100% convinced by world class customers
4. Custom case size capacitor available

Screw Terminal Large Can Aluminum Electrolytic Capacitor Application Guide

• UPS, Industrial power supply
• Frequency converters, Wind power converters
• Switch-mode power supplies
• Solar inverters
• Professional power supplies
Aluminum Electrolytic Capacitors with screw terminals 10V, 16V, 25V, 35V, 50V, 63V, 80V, 100V, 160V, 200V, 250V, 350V, 400V, 450V
63V Informations

Series

Spec.
Cap Code
Dimension(mm)

Load life
D
L







C36L
10V 33000UF
333
35
60







105℃ 500 hours
25V 8200UF
822
35
50
25V 220000UF
224
65
120
25V 270000UF
274
76
120
35V 82000UF
823
50
92
40V 47000UF
473
50
80
40V 100000UF
104
64
100
50V 68000UF
683
65
100
50V 100000UF
104
76
100
50V 220000UF
224
76
180
