Factory Direct 63V 10000uF Screw Terminals Aluminum Electrolytic Capacitor 63V 10000MFD
Model Number: C94 Aluminum electrolytic capacitor
Type: Aluminum Electrolytic Capacitor
Place of Origin: Zhejiang, China
Brand Name: AnXon Aluminum electrolytic capacitor
Capacitance: 10000UF
Media Available: datasheet, Photo
Package Type: Through Hole
Rated Voltage: 63V
Operating Temperature: -40℃ ~ +85℃
ESR (Equivalent Series Resistance): 8.0 mΩ
Application: General Purpose, General Purpose

Contact: *
Company: MSN/skype:
Subject:
Tel: Fax:
E-mail: * Website:
Content: *
Code: *(marked *should be filled)

Description
Products Description

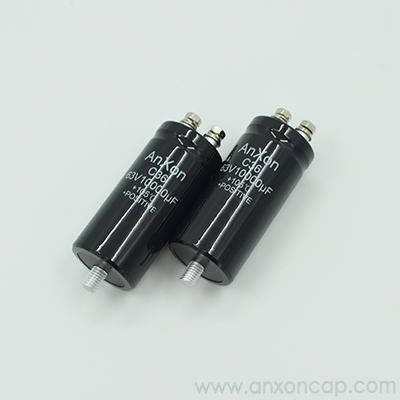

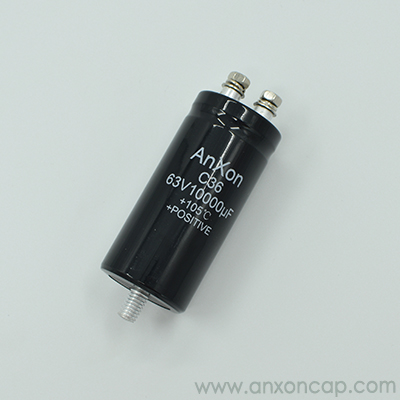

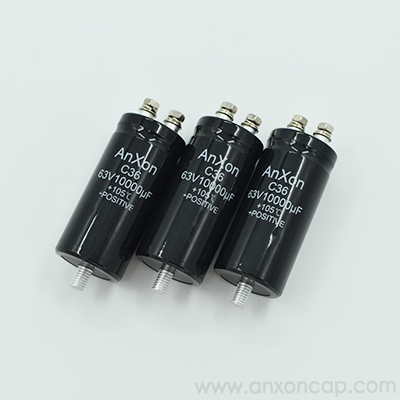

Factory Direct 63V 10000uF Screw Terminals Aluminum Electrolytic Capacitor 63V 10000MFD
Screw terminal aluminum electrolytic capacitor 63V 10000uF, Screw type Large can aluminum electrolytic capacitor 63V, 63V 10000MFD Bolt type Electrolytic Capacitor, 63V 10000uF 500 hours 105℃ electrolytic capacitor offered by AnXon Electronic
Rated Spec:
63V 10000uF, 63V 10000MFD
Tolerance:
M, ±20%
Type:
Screw terminal, Large can, Bolt type
Load life :
500 hours at 105℃
Operating Temperature:
-40℃ ~ +85℃
Size / Dimension(ΦD×L):
D: 35mm, L: 75mm

Our Advantage :

1. Short lead time, quick delivery
2. Low cost price , great quality
3. 100% convinced by world class customers
4. Custom case size capacitor available

Screw Terminal Large Can Aluminum Electrolytic Capacitor Application Guide

• UPS, Industrial power supply
• Frequency converters, Wind power converters
• Switch-mode power supplies
• Solar inverters
• Professional power supplies
Aluminum Electrolytic Capacitors with screw terminals 10V, 16V, 25V, 35V, 50V, 63V, 80V, 100V, 160V, 200V, 250V, 350V, 400V, 450V
63V Informations

Series

Spec.
Cap Code
Dimension(mm)

Load life
D
L











C94
63V 10000UF
103
35
75











105℃ 2000 hours
63V 15000UF
153
35
80
63V 22000UF
223
50
80
63V 22000UF
223
40
80
63V 33000UF
333
50
100
63V 33000UF
333
50
120
63V 47000UF
473
50
100
63V 68000UF
683
64
120
63V 91000UF
913
64
120
63V 100000UF
104
76
120
63V 220000UF
224
76
180
63V 240000UF
244
89
185
63V 270000UF
274
89
180
80V 47000UF
473
65
100
80V 270000UF
274
89
235
