Description

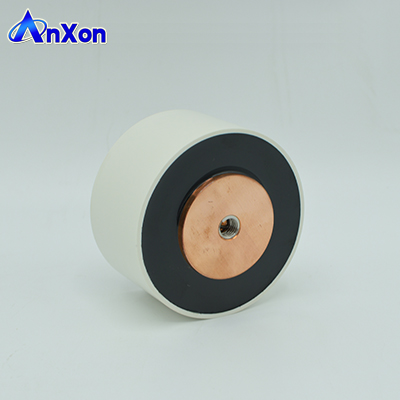

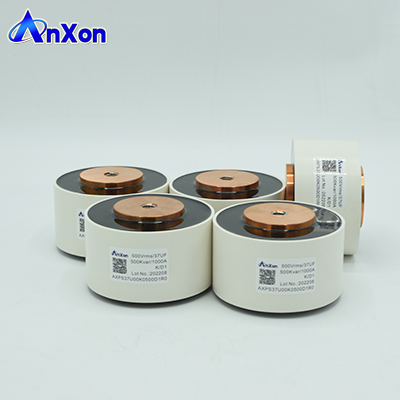

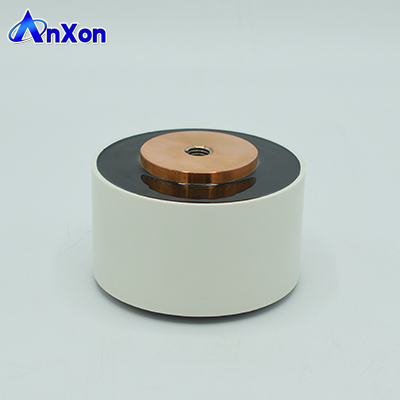

 500V 37UF 500KVA Conduction Cooled High Frequency Film Capacitors


Type SN0500STM8 (D1)
Rated Voltage Vrms 1100 750 900 700 500 550 500
Capacitance
(±10%)
μF 1.40 3.00 4.00 6.30 8.50 10.00 21.00 27.00 37.00
Peak Voltage V 1560 1060 1270 990 710 780 710
Current Arms 600 800 700 1000
Max.Power kVAr 500
Freq. Range
@FullPower
kHz 47-82 47-68 25-39 26-51 19-37 16-32 15-51 10-12 9-9
Stray Inductance nH < 10
Dimensions(D) mm Φ80 Φ101 Φ80 Φ88 Φ94 Φ80 Φ101
Weight Kg 1.1 1.4 1.1 1.2 1.3 1.1 1.5




AnXon power Film capacitors and foil-type high-frequency induction heating capacitors are widely used in induction heating,
railways, plasma generators, magnetizers, electric power, new energy, medical equipment, wireless power transfer and auxiliary
power supplies and resonant circuits applications.

AnXon power Film capacitors’ features are with a wide frequency range 5 Khz to 1 MHz, current ratings 200 to 1250 Arms, voltage
ratings 400 to 1200 Vrms and power ratings 150 to 1000 KVAR.

AnXon high-frequency induction heating capacitor adopts a high-temperature-resistant polypropylene film and foil composite
structure for non-inductive winding, a special spray gold process, a flame-retardant epoxy resin potting, and a copper plate
electrode lead. It has the characteristics of small size, small stray inductance, strong over-current capability, and good
stability. It is widely used in series and parallel LC resonant circuits of various medium and high-frequency electronic
equipment. Installation is simple, convenient, and flexible.
Application
Induction heating
Plasma generators/Plasma applications
Medical equipment/Medical imaging
Magnetizers
Electric vehicle chargers
Auxiliary power supplies
Resonant circuits
Heat Treatment
Wireless Power Transfer
Ipt
High Frequency Inverters
