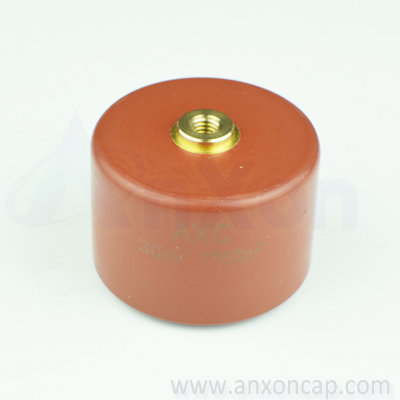

Rated Capacitance：1700PF
Test Voltage： 45KVDC 60s
Size：D40mm x H30mm, M5, Customized available on request
Brand: AnXon AXC
P/N: AXCT8G30D172KDC
Equivalent to AVX HP50E30172M、EPCOS TDK UHV-5A、Murata DHS4E4F172KR2B/DHS4E4F172MRXB 和 HVCA CKE NY5T3M172K30KV
|
1、Features
1).Excellent behavior on pulse and fast discharge conditions
2).Excellent capacitance vs voltage characteristic
3).Very low partial discharge
4).Low dissipation factor
5).High reliability, Customized products available on request
2、Applications
HV power supplies, DC Power Supplies, DC HV power supplies, High voltage power supply
X-Ray Power Supplies, CRT power supplies, Marx generators, Power generators
Lasers, Gas Laser, high voltage lasers, High voltage supply for gas lasers
Lightning arresters, Lightning Arrestor, voltage distribution systems, AC Voltage Distribution
Electrostatic spray equipment, Electrostatic Copying Machines, Electrostatic coating machines
Electron Microscopes and synchroscopes, High voltage dividers
High voltage coupling devices, Power line coupling system for Internet & Telecom
High voltage power circuits for medical devices, lithography, industrial analyzers
Distribution line switches (zero-phase detection, demarcation point), electric power selling detection
For GCB/GIS Gas Circuit breakers for gas insulation switchgears (supporting SF6 gas)
3、Products Range
1). Rated voltage: 10 to 150 kVdc
2). Rated capacitance: 10pF to 0.02uF
3). Test voltage: 12 to 80 kVrms
4). Lightning Impulse voltage 35 to 200 kVdc
5). Partial discharge test：1 to 10pC
4、Regular Products
| Part Number |
Rated Voltage |
Capacitance |
Dimensions(mm) | ||||
| (KVdc) |
C(pF) |
Tol(%) |
D |
T |
H |
M | |
| AXCT8GD501K30DB | 30 | 500 | ±10 | 28 | 28 | 32 | 5 |
| AXCT8GD122K30DB | 1200 | ±10 | 38 | 28 | 32 | ||
| AXCT8GD272K30DB | 2700 | ±10 | 52 | 28 | 32 | ||
| AXCT8GD352M30DB | 3500 | ±20 | 58 | 28 | 32 | ||
| AXCT8GD532M30DB | 5300 | ±20 | 60 | 28 | 32 | ||
| AXCT8GD103M30DB | 10000 | ±20 | 80 | 32 | 36 | ||
5、Outline Drawing
6、Advantage:
AnXon provide high quality replacements of the below famous brand capacitors with great success experience of customers
AVX HP / HW / HK / HD / HE Series N4700 Dielectric High Voltage Ceramic Doorknob Capacitors
EPCOS TDK TSF / H / GA / FD / MD / UHV / FHV Series Z5T, Y5S, Z5U, Y5P Dielectric Ultra high Voltage Ceramic Capacitor
Murata DHS Series N4700 Z5V Dielectric Mold Type High Voltage Ceramic Doorknob Capacitor
Main Dielectric for High Voltage Doorknob Ceramic Capacitor
NPO, SL, K100, K300, K1700, N4700, Y5S, Y5T, Z5T, Y5P, K3500, K5000, Y5U, Z5U, Y5V, Z5V
