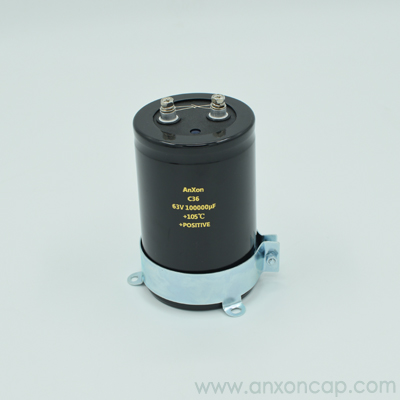

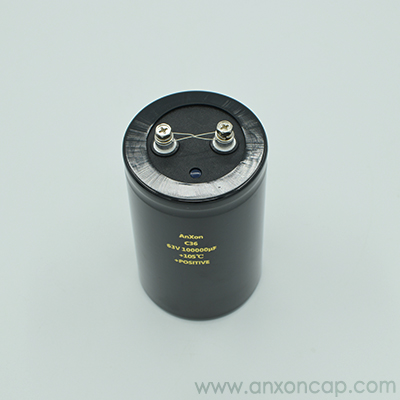

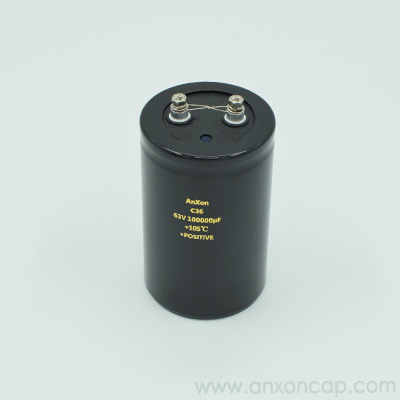

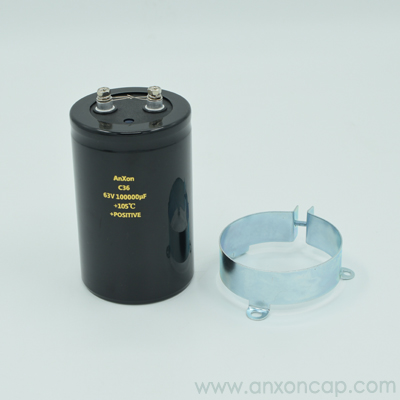

Capacitor 63V 100000uF Type A Aluminum Electrolytic Capacitor with screw terminals 63V 100000MFD
Model Number: CD135 Aluminum electrolytic capacitor
Type: Aluminum Electrolytic Capacitor
Place of Origin: Zhejiang, China
Brand Name: AnXon Aluminum electrolytic capacitor
Capacitance: 100000UF
Media Available: datasheet, Photo
Package Type: Through Hole
Rated Voltage: 63V
Operating Temperature: -40℃ ~ +105℃
Application: General Purpose

Contact: *
Company: MSN/skype:
Subject:
Tel: Fax:
E-mail: * Website:
Content: *
Code: *(marked *should be filled)

Description
Products Description

Capacitor 63V 100000uF Type A Aluminum Electrolytic Capacitor with screw terminals 63V 100000MFD

Screw terminal aluminum electrolytic capacitor 63V 100000UF, Screw type Large can aluminum electrolytic capacitor 63V, 63V
100000MFD Bolt type Electrolytic Capacitor, 100000UF 63V 2000 hours 85C electrolytic capacitor offered by AnXon Electronic
Rated Spec:
63V 100000uF, 63V 100000MFD
Tolerance:
M, ±20%
Type:
Screw terminal, Large can, Bolt type
Load life :
3000 hours at 105℃
Operating Temperature:
-40℃ ~ +105℃
Size / Dimension(ΦD×L):
D: 76mm, L: 120mm

Our Advantage :

1. Short lead time, quick delivery
2. Low cost price , great quality
3. 100% convinced by world class customers
4. Custom case size capacitor available

Screw Terminal Large Can Aluminum Electrolytic Capacitor Application Guide

• UPS, Industrial power supply
• Frequency converters, Wind power converters
• Switch-mode power supplies
• Solar inverters
• Professional power supplies
Aluminum Electrolytic Capacitors with screw terminals 10V, 16V, 25V, 35V, 50V, 63V, 80V, 100V, 160V, 200V, 250V, 350V, 400V, 450V,63V Informations

Series

Spec.
Cap Code
Dimension(mm)

Load life
D
L
















CD135
63V 3900UF
392
36
53
















85℃ 2000 hours
63V 4700UF
472
36
53
63V 5600UF
562
36
53
63V 6800UF
682
36
65
63V 8200UF
822
36
83
63V 10000UF
103
36
83
63V 12000UF
123
36
100
63V 15000UF
153
36
100
63V 18000UF
183
36
121
63V 22000UF
223
36
121
63V 27000UF
273
51
96
63V 33000UF
333
51
96
63V 39000UF
393
51
115
63V 47000UF
473
51
130
63V 56000UF
563
64
115
63V 68000UF
683
64
121
63V 82000UF
823
64
130
63V 100000UF
104
76
120
63V 120000UF
124
77
130
63V 150000UF
154
77
155
63V 180000UF
184
90
131
63V 220000UF
224
90
157

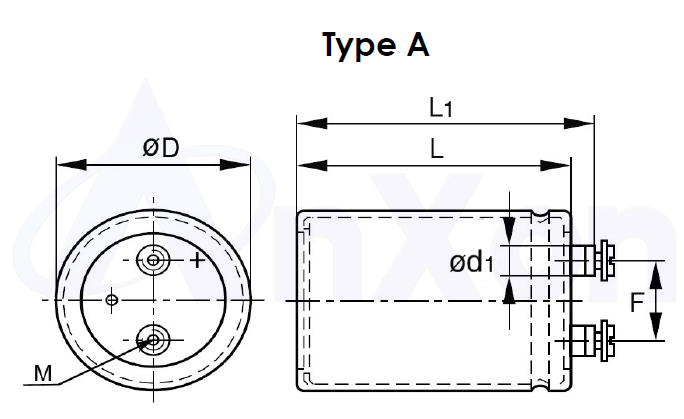

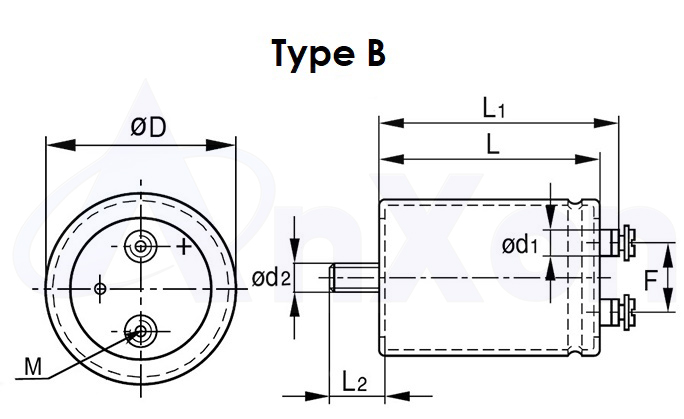

Drawing

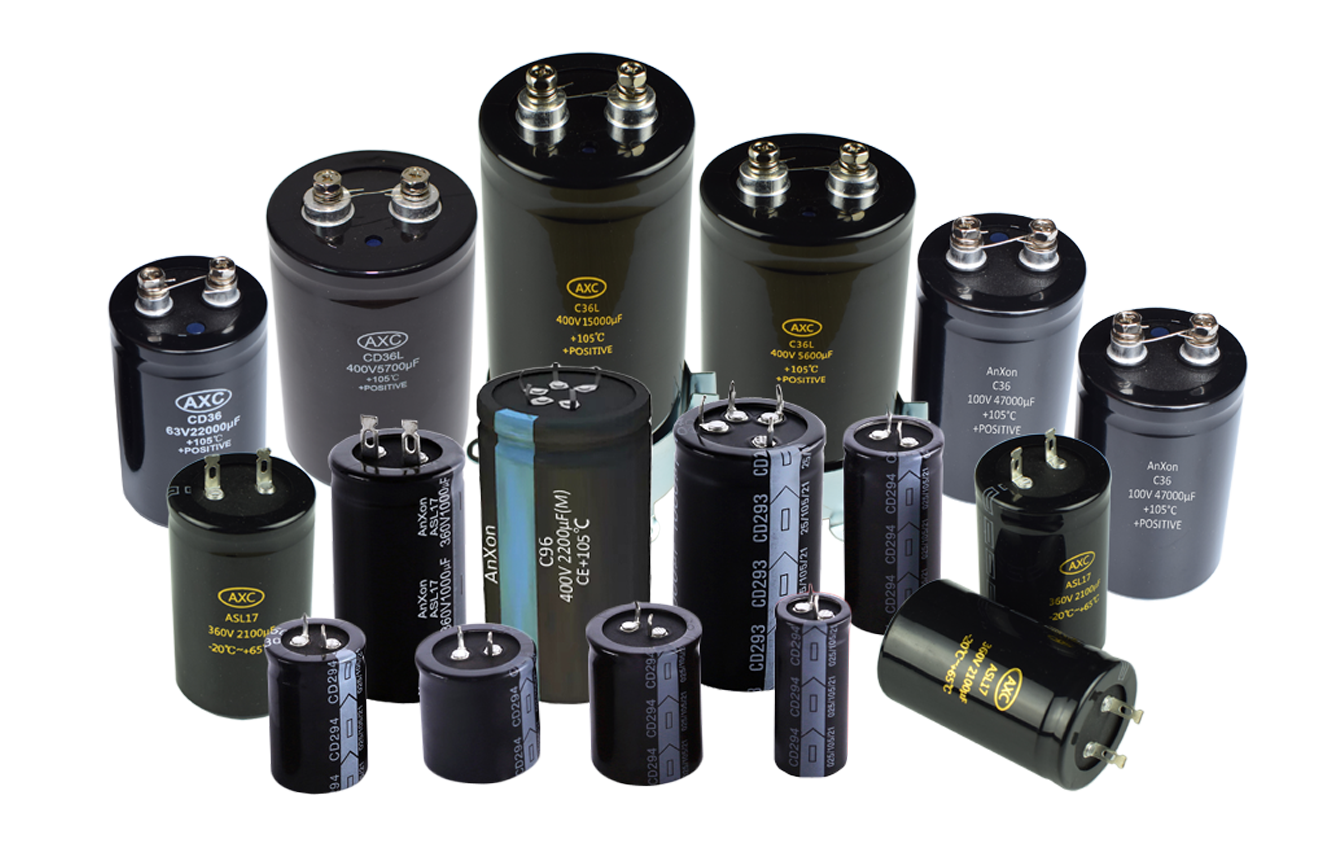

Products

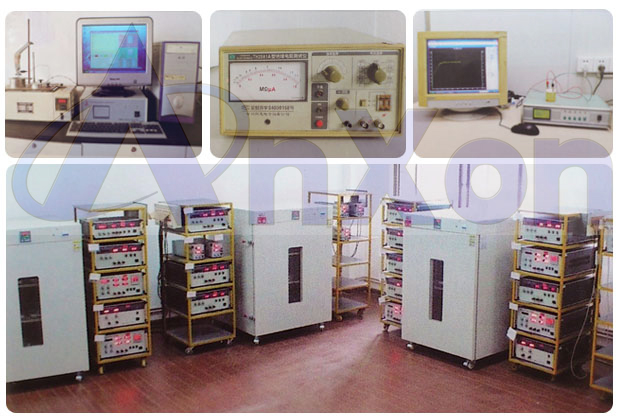

Testing

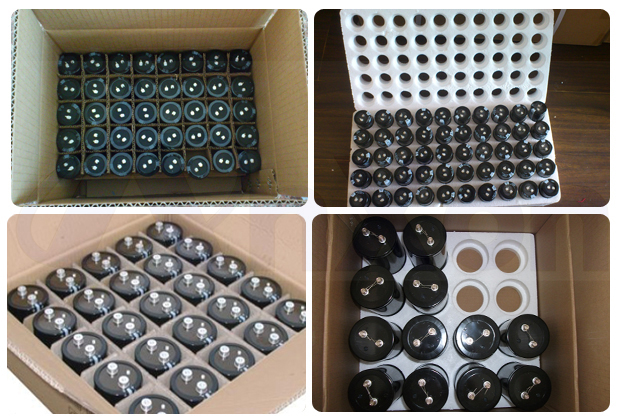

Packing
