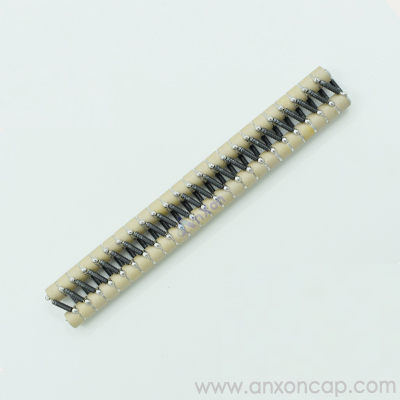

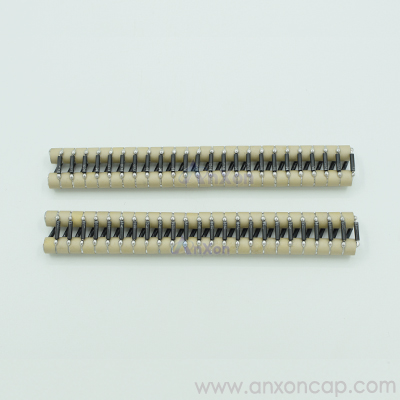

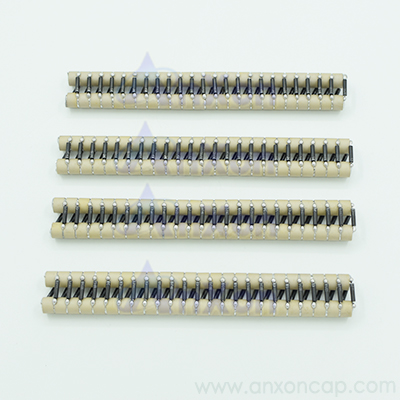

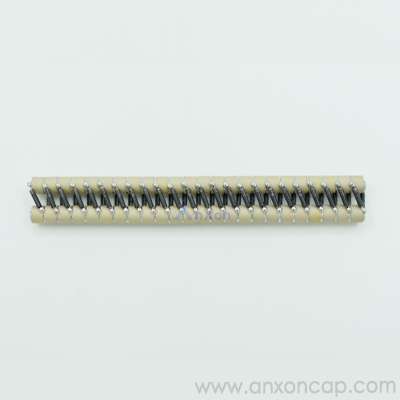

AnXon 30KV 220PF 24 stacks with 2CL75A 16KV 5mA 100nS diode High voltage ceramic multiplier assembly
Model Number: CT8S capacitor & diode multiplier module
Type: CERAMIC CAPACITOR
Place of Origin: Zhejiang, China
Brand Name: AnXon capacitor & diode multiplier module
Capacitance: 220PF, 220pF
Media Available: datasheet, Photo
Package Type: Through Hole
Rated Voltage: 30KV, 30KVDC
Operating Temperature: -40 ~ +85℃
Application: RF / Microwave, Hight Voltage
Name: capacitor & diode multiplier module
No of capacitors: 24
Capacitance tolerance: 10%(K)
Output voltage: 40kV~150kV
Brand: AnXon
Certificate: RoHS/CE/ISO9000

Contact: *
Company: MSN/skype:
Subject:
Tel: Fax:
E-mail: * Website:
Content: *
Code: *(marked *should be filled)

Description
Product Description

30KV 2200PF 24 stacks with 2CL75A 16KV 5mA 100nSdiodeHigh voltage ceramic multiplier assembly

Specifications
1, Multiple designs up to 24 stages
2, Voltage ratings of the individual discs is 30kVdc
3, Capacitance ratings of the individual discs is 350pF
4, Stacks with diodes, Other versions on request
5, Small size, Lead (Pb)-free version on request

AnXon provide high quality customized ceramic capacitor stacks and High Voltage Ceramic Capacitor Multiplier Sets, Please see below table to select our standard parts.

All the capacitance, voltage, number of stacks, diodes specs can be as your request,
Individual
discs
Capacitance
Individual
discs
Voltage
Number of
Stacks
Ceramic
Dielectric
Diode
for Multiplier
100pF


8kV

10kV

12kV

15kV

20kV

25kV

30kV

others



4 stacks

5 stacks

6 stacks

8 stacks

10 stacks

12 stacks

others





N4700

Y5T

Y5U

others



2CL73 12kV 5mA

2CL74 14kV 5mA

2CL75 16kV 5mA

2CL76 18kV 5mA

2CL77 20kV 5mA

JB99T 20kV 20mA

HVRT150 15kV 30mA

HVRT200 20kV 30mA

others
150pF
220pF
250pF
280pF
310pF
330pF
350pF
470pF
500pF
1000pF
2200pF
2400pF
Products Application
Ceramic capacitor stacks have been developed for use in low power voltage multipliers used in high voltage DC generators. The major applications are x-ray equipment for medical diagnostics or electrostatic paint spraying equipment.
HV Voltage Multiplier Unit Application Guide
The major applications are x-ray equipment for:
• Medical diagnosis
• Dentistry x-ray application
• Industrial x-ray for material control
• Airport security x-ray scanner
• Low power voltage multipliers
• High voltage DC generators.
• X-ray equipment for medical diagnostics
•Electrostatic paint spraying equipment.
