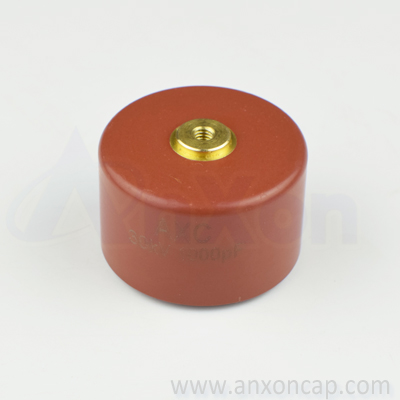

AnXon 30KV 1000PF Y5T Screw Terminal High Voltage Ceramic Capacitor
Rated Voltage:30KVDC
Rated Capacitance:1000PF
Test Voltage: 45KVDC 60s
Size:D38mm x H26mm, M4, Customized available on request
Brand: AnXon AXC
P/N: AXCT8G30D102KDB
Equivalent to AVX HP40E30102M & Vishay 715C30DKD10

Contact: *
Company: MSN/skype:
Subject:
Tel: Fax:
E-mail: * Website:
Content: *
Code: *(marked *should be filled)

Description

1、Features

1).Excellent behavior on pulse and fast discharge conditions
2).Excellent capacitance vs voltage characteristic
3).Very low partial discharge
4).Low dissipation factor
5).High reliability, Customized products available on request

2、Applications

HV power supplies, DC Power Supplies, DC HV power supplies, High voltage power supply

X-Ray Power Supplies, CRT power supplies, Marx generators, Power generators

Lasers, Gas Laser, high voltage lasers, High voltage supply for gas lasers

Lightning arresters, Lightning Arrestor, voltage distribution systems, AC Voltage Distribution

Electrostatic spray equipment, Electrostatic Copying Machines, Electrostatic coating machines

Electron Microscopes and synchroscopes, High voltage dividers

High voltage coupling devices, Power line coupling system for Internet & Telecom

High voltage power circuits for medical devices, lithography, industrial analyzers

Distribution line switches (zero-phase detection, demarcation point), electric power selling detection

For GCB/GIS Gas Circuit breakers for gas insulation switchgears (supporting SF6 gas)


3、Products Range

1). Rated voltage: 10 to 150 kVdc
2). Rated capacitance: 10pF to 0.02uF
3). Test voltage: 12 to 80 kVrms
4). Lightning Impulse voltage 35 to 200 kVdc
5). Partial discharge test:1 to 10pC

4、Regular Products
Part Number
Rated Voltage
Capacitance
Dimensions(mm)
(KVdc)
C(pF)
Tol(%)
D
T
H
M
AXCT8GD501K30DB 30 500 ±10 28 28 32 5
AXCT8GD122K30DB 1200 ±10 38 28 32
AXCT8GD272K30DB 2700 ±10 52 28 32
AXCT8GD352M30DB 3500 ±20 58 28 32
AXCT8GD532M30DB 5300 ±20 60 28 32
AXCT8GD103M30DB 10000 ±20 80 32 36














5、Outline Drawing

6、Advantage:

AnXon provide high quality replacements of the below famous brand capacitors with great success experience of customers

AVX HP / HW / HK / HD / HE Series N4700 Dielectric High Voltage Ceramic Doorknob Capacitors

EPCOS TDK TSF / H / GA / FD / MD / UHV / FHV Series Z5T, Y5S, Z5U, Y5P Dielectric Ultra high Voltage Ceramic Capacitor

Murata DHS Series N4700 Z5V Dielectric Mold Type High Voltage Ceramic Doorknob Capacitor



Main Dielectric for High Voltage Doorknob Ceramic Capacitor

NPO, SL, K100, K300, K1700, N4700, Y5S, Y5T, Z5T, Y5P, K3500, K5000, Y5U, Z5U, Y5V, Z5V
