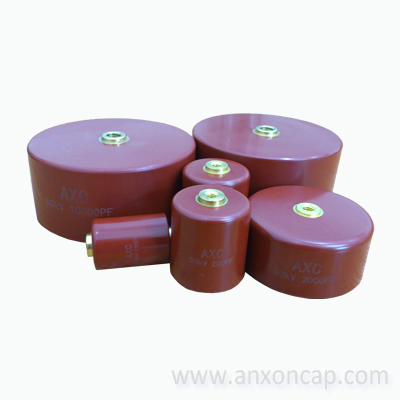

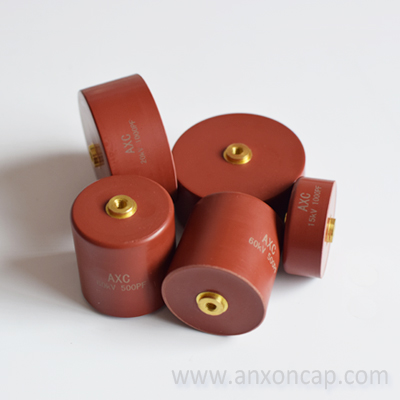

20KV 3300PF X-ray power supply ceramic capacitor
Rated DC voltage:20kVdc
Rated Capacitance:3300PF ±10% (20ºC,1kHz,1Vrms)
Ceramic dielectric material: Y5T
Part Number: AXCT8GD30332K2D1B
Dimensions: D48 x H19 x L23, M4
Brand: AnXon / AXC

Contact: *
Company: MSN/skype:
Subject:
Tel: Fax:
E-mail: * Website:
Content: *
Code: *(marked *should be filled)

Description

20KV 3300PF X-ray power supply ceramic capacitor

Cixi AnXon Electronic Co., Ltd is a leader in the design and manufacture of complex electronic ceramic
components and assemblies used in a wide range of applications and cutting edge technologies. AnXon
specializes in the development and production of dielectric and ferroelectric materials and components.


 Main Specifications



Rated DC voltage

20kVdc

Rated Capacitance

3300PF ±10% (20ºC,1kHz,1Vrms)

Ceramic dielectric material

Y5T

Part Number

AXCT8GD30332K2D1B

Dimensions

D48 x H19 x L23, M4 (other value available on request)

Dissipation factor

Max 0.2%

Capacitance change with temperature

+22/-33%

Withstand voltage test

1.5 times Rated DC Voltage (50Hz, in oil, 60s)

Insulation resistance (1000Vdc/60s)

>100GΩ

Operating Temperature ranges

-30 +85ºC

Partial Discharge Test (PD)

20pC 20kV, other value available on request

Self-inductance (ESL)

LS ≤ 30nH






















 Other Product Types



Cixi AnXon Electronic is committed to providing customers with mature, high quality, high reliability and customized
high voltage ceramic capacitors. It is suitable for various high voltage, high frequency, high power, high temperature
and high current applications.
The main materials are: NP0, COG, SL, DL, K1000, N4700, Y5T, Y5S, Y5P, Y5R, Y5U





 Rated Products


Part Number

Rated
Voltage
Un
(KVDC)

Rated
Capacitance
Cn
(PF)

Ceramic
Dielectric

Dimensions
(mm)

Ceramic
Dielectric
Code




D±1

H±1

L±2

M



AXCT8GG30250K2D1B

20

25

SL

20

20

24

4

G3



AXCT8GC80101K2D1B

20

100

DL

20

14

18

4

C8



AXCT8GC80151K2D1B

20

150

DL

30

20

24

4

C8



AXCT8GE40281K2D1B

20

280

N4700

20

16

20

4

E4



AXCT8GC40471K2D1B

20

470

DL

48

18

22

4

C4



AXCT8GE40501K2D1B

20

500

N4700

30

20

24

4

E4



AXCT8GE40561K2D1B

20

560

N4700

30

18

22

4

E4



AXCT8GE40881K2D1B

20

880

N4700

38

18

22

4

E4



AXCT8GE40102K2D1B

20

1000

N4700

38

22

26

4

E4



AXCT8GD30102K2D1B

20

1000

Y5T

30

23

27

4

D3



AXCT8GE40142K2D1B

20

1400

N4700

38

20

24

4

E4



AXCT8GE40152K2D1B

20

1500

N4700

40

20

24

4

E4



AXCT8GE40172K2D1B

20

1700

N4700

40

18

22

4

E4



AXCT8GD30252K2D1B

20

2500

Y5T

48

22

26

4

D3



AXCT8GD50272K2D1B

20

2700

Y5T

38

21

25

4

D5



AXCT8GC80302K2D1B

20

3000

DL

80

18

22

5

C8



AXCT8GD30332K2D1B

20

3300

Y5T

48

19

23

4

D3



AXCT8GE40362K2D1B

20

3600

N4700

60

19

23

4

E4



AXCT8GE40402K2D1B

20

4000

N4700

60

18

22

4

E4



AXCT8GD30402K2D1B

20

4000

Y5T

48

19

23

4

D3



AXCT8GD30482K2D1B

20

4800

Y5T

60

22

26

4

D3



AXCT8GD30502K2D1B

20

5000

Y5T

60

21

25

4

D3



AXCT8GS40522K2D1B

20

5200

Y5S

52

19

23

4

S4



AXCT8GE40532K2D1B

20

5300

N4700

70

18

22

4

E4



AXCT8GD50682K2D1B

20

6800

Y5T

60

22

26

4

D5



AXCT8GD50103K2D1B

20

10000

Y5T

70

24

28

5

D5



AXCT8GD50153K2D1B

20

15000

Y5T

86

24

28

5

D5



Notes

* Withstand voltage test: Un≤80kV 1.5 times Un, Un80kV 1.2 times Un, this is minimum figures,

* Standard capacitance tolerance: ±10%, others available on request.

* All specifications are designed for our current customers, other voltage, capacitance, dimensions available on request.

* Larger capacitance and higher voltage capacitor banks available on request.



 Main Applications


The main applications include live line indicators, AC dividers, grading systems for power distribution network, protection for
HV switches and power circuit breakers. Coupling, by-passing high frequency circuits also use HV ceramic disc capacitors.
Laser pulses circuitry, high energy and high voltage test equipment (HV accelerators, physics research) require products
especially adapted to their specific requirements.

• High voltage supply for gas laser
• High-voltage dividers
• Marx generators, Power generators
• High voltage columns for collider of HV accelerator
• High-voltage coupling devices
• Power line coupling system for Internet & Telecom
• Lightning arresters, voltage distribution systems
• HV Power Supply for X-ray, excimer lasers





 Production & Quality Management

High voltage doorknob ceramic capacitors from AnXon are 100% tested of the below parameters

• Capacitance
• Tolerance
• Dielectric withstanding voltage
• Dissipation Factor
• Insulation Resistance
• Partial discharge
• Lightening impulse voltage: sampling




 AnXon Company



Cixi AnXon Electronic Co., Ltd is a leader in the design and manufacture of complex electronic ceramic components
and assemblies used in a wide range of applications and cutting edge technologies. Specialized manufacturer and
supplier of high voltage ceramic capacitors, doorknob capacitors, pulse power capacitors, RF power capacitors,
AC live line capacitors, high Q capacitors, high temperature capacitors, high quality customize design ceramic
capacitors, high voltage capacitor banks for high energy pulses and storage.
Main Products:
1). High Voltage Disc Ceramic Capacitors
HV ceramic disc capacitors, ultra HV screw doorknob capacitors, AC live line capacitors, Voltage Multiplier Assembly,
Ceramic capacitor stacks, Pulse power capacitors, HV AC ceramic capacitors, Ring style high voltage ceramic capacitors
2). RF power ceramic capacitors,
Disk / plate capacitors, Water cooled power capacitors, Feedthrough RF capacitors, Tubular ceramic capacitors
3). High Q power ceramic capacitors
High Q multilayer capacitors, RF / Microwave Multilayer Capacitors, High Q MLCC
4). High Voltage Chip SMD Ceramic Capacitors, High Voltage MLCC
250V, 500V, 1000V 1KV, 1500V, 2000V 2KV, 2500V, 3000V 3KV, 4000V 4KV, 5000V 5KV, 6000V, 6KV, 7000V, 7KV, 8000V,
8KV, 9000V, 9KV 10KV HV MLCC
5). High temperature Chip SMD ceramic capacitors, High temperature MLCC
125°C, 150°C, 175°C, 200°C, 250°C, 300°C Radial Leaded High Voltage Ceramic Capacitors, HV MLCC
125C, 150C, 175C, 200C, 250C, 300C High Temperature HV Multilayer Chip SMD Uncoated Ceramic Capacitors MLCC



 AVX High Voltage Ceramic Capacitors Reference





AVX is a leading international manufacturer and supplier of a vast portfolio of advanced electronic components, including: capacitors,
inductors, filters,
resistors, couplers, diodes, and circuit protection devices, as well as a broad range of innovative sensor, control, inter
connect and antenna solutions.
AVX has successfully served the automotive, industrial, medical, military, consumer electronics, communications,
and transportation markets.



HK Type – Strontium-based Dielectric Uncoated Devices With Fixtures



HK30E50281M; HK40E50411M; HK40E50501M; HK40E50561M; HK50E50751M; HK50E50851M; HK50E50102M; HK60E51351M; HK60E50152M; HK60E51651M

HK30E61950M; HK40E63750M; HK50E60501M; HK50E60701M; HK60E60851M; HK60E60102M; HK60E60122M; HK50E90501M; HK60E96750M; HK60E90751M

HK60E98250M


AVX stopped the production of these high voltage ceramic capacitors, if you need any alternatives please CLICK HERE.
