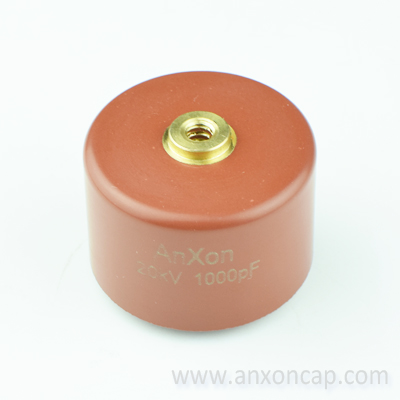

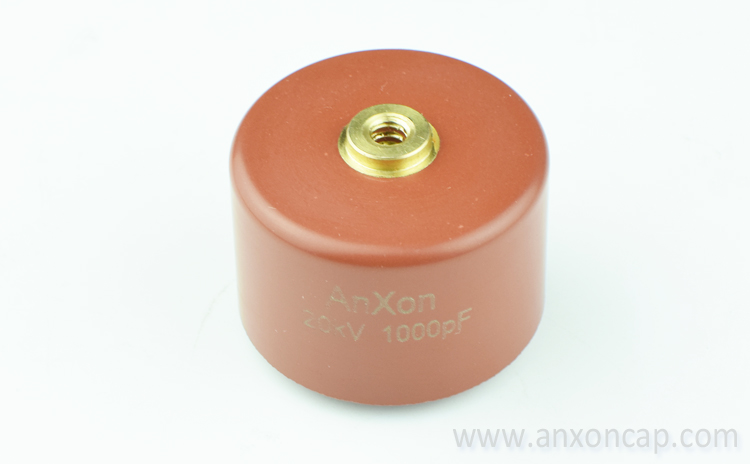

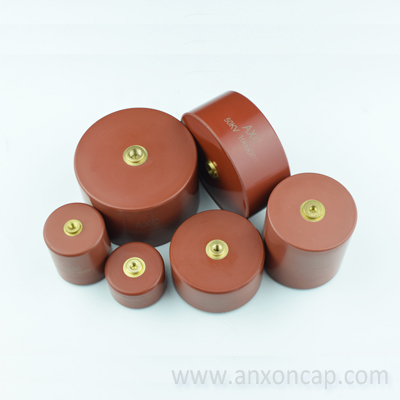

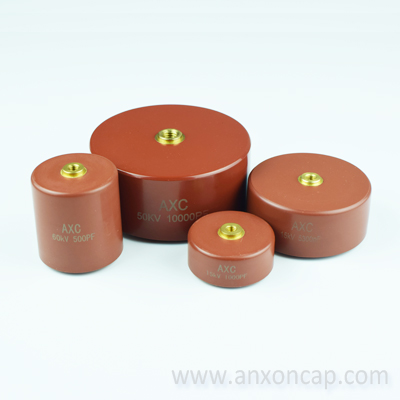

20KV 1000PF N4700 Power Line Carrier Transmission Capacitor
Cixi AnXon Electronic Co., Ltd is a leader in the design and manufacture of complex electronic ceramic
components and assemblies used in a wide range of applications and cutting edge technologies. AnXon
specializes in the development and production of dielectric and ferroelectric materials and components.
Main Specifications
Rated DC voltage
20kVdc
Rated Capacitance
1000PF ±10% (20ºC,1kHz,1Vrms)
Ceramic dielectric material
N4700
Part Number
AXCT8GE40102K2D1B
Dimensions
D38 x H22 x L26, M4 (other value available on request)
Dissipation factor
Max 0.2%
Capacitance change with temperature
+22/-33%
Withstand voltage test
1.5 times Rated DC Voltage (50Hz, in oil, 60s)
Insulation resistance (1000Vdc/60s)
>100GΩ
Operating Temperature ranges
-30 +85ºC
Partial Discharge Test (PD)
20pC 20kV, other value available on request
Self-inductance (ESL)
LS ≤ 30nH
Other Product Types
Cixi AnXon Electronic is committed to providing customers with mature, high quality, high reliability and customized
high voltage ceramic capacitors. It is suitable for various high voltage, high frequency, high power, high temperature
and high current applications.The main materials are: NP0, COG, SL, DL, K1000, N4700, Y5T, Y5S, Y5P, Y5R, Y5U
Rated Products
Rated
Voltage
Un
(KVDC)
Rated
Capacitance
Cn
(PF)
Ceramic
Dielectric
Dimensions
(mm)
Ceramic
Dielectric
Code
D±1
H±1
L±2
M
AXCT8GG30250K2D1B
20
25
SL
20
20
24
4
G3
AXCT8GC80101K2D1B
20
100
DL
20
14
18
4
C8
AXCT8GC80151K2D1B
20
150
DL
30
20
24
4
C8
AXCT8GE40281K2D1B
20
280
N4700
20
16
20
4
E4
AXCT8GC40471K2D1B
20
470
DL
48
18
22
4
C4
AXCT8GE40501K2D1B
20
500
N4700
30
20
24
4
E4
AXCT8GE40561K2D1B
20
560
N4700
30
18
22
4
E4
AXCT8GE40881K2D1B
20
880
N4700
38
18
22
4
E4
AXCT8GE40102K2D1B
20
1000
N4700
38
22
26
4
E4
AXCT8GD30102K2D1B
20
1000
Y5T
30
23
27
4
D3
AXCT8GE40142K2D1B
20
1400
N4700
38
20
24
4
E4
AXCT8GE40152K2D1B
20
1500
N4700
40
20
24
4
E4
AXCT8GE40172K2D1B
20
1700
N4700
40
18
22
4
E4
AXCT8GD30252K2D1B
20
2500
Y5T
48
22
26
4
D3
AXCT8GD50272K2D1B
20
2700
Y5T
38
21
25
4
D5
AXCT8GC80302K2D1B
20
3000
DL
80
18
22
5
C8
AXCT8GD30332K2D1B
20
3300
Y5T
48
19
23
4
D3
AXCT8GE40362K2D1B
20
3600
N4700
60
19
23
4
E4
AXCT8GE40402K2D1B
20
4000
N4700
60
18
22
4
E4
AXCT8GD30402K2D1B
20
4000
Y5T
48
19
23
4
D3
AXCT8GD30482K2D1B
20
4800
Y5T
60
22
26
4
D3
AXCT8GD30502K2D1B
20
5000
Y5T
60
21
25
4
D3
AXCT8GS40522K2D1B
20
5200
Y5S
52
19
23
4
S4
AXCT8GE40532K2D1B
20
5300
N4700
70
18
22
4
E4
AXCT8GD50682K2D1B
20
6800
Y5T
60
22
26
4
D5
AXCT8GD50103K2D1B
20
10000
Y5T
70
24
28
5
D5
AXCT8GD50153K2D1B
20
15000
Y5T
86
24
28
5
D5
Notes
* Withstand voltage test: Un≤80kV 1.5 times Un, Un＞80kV 1.2 times Un, this is minimum figures,
* Standard capacitance tolerance: ±10%, others available on request.
* All specifications are designed for our current customers, other voltage, capacitance, dimensions available on request.
* Larger capacitance and higher voltage capacitor banks available on request.
Main Applications
The main applications include live line indicators, AC dividers, grading systems for power distribution network, protection for
HV switches and power circuit breakers. Coupling, by-passing high frequency circuits also use HV ceramic disc capacitors.
Laser pulses circuitry, high energy and high voltage test equipment (HV accelerators, physics research) require products
especially adapted to their specific requirements.
• High voltage supply for gas laser
• High-voltage dividers
• Marx generators, Power generators
• High voltage columns for collider of HV accelerator
• High-voltage coupling devices
• Power line coupling system for Internet & Telecom
• Lightning arresters, voltage distribution systems
• HV Power Supply for X-ray, excimer lasers
Production & Quality Management
High voltage doorknob ceramic capacitors from AnXon are 100% tested of the below parameters
• Capacitance
• Tolerance
• Dielectric withstanding voltage
• Dissipation Factor
• Insulation Resistance
• Partial discharge
• Lightening impulse voltage: sampling
AnXon Company
Cixi AnXon Electronic Co., Ltd is a leader in the design and manufacture of complex electronic ceramic components
and assemblies used in a wide range of applications and cutting edge technologies. Specialized manufacturer and
supplier of high voltage ceramic capacitors, doorknob capacitors, pulse power capacitors, RF power capacitors,
AC live line capacitors, high Q capacitors, high temperature capacitors, high quality customize design ceramic
capacitors, high voltage capacitor banks for high energy pulses and storage.
Main Products:
1). High Voltage Disc Ceramic Capacitors
HV ceramic disc capacitors, ultra HV screw doorknob capacitors, AC live line capacitors, Voltage Multiplier Assembly,
Ceramic capacitor stacks, Pulse power capacitors, HV AC ceramic capacitors, Ring style high voltage ceramic capacitors
2). RF power ceramic capacitors,
Disk / plate capacitors, Water cooled power capacitors, Feedthrough RF capacitors, Tubular ceramic capacitors
3). High Q power ceramic capacitors
High Q multilayer capacitors, RF / Microwave Multilayer Capacitors, High Q MLCC
4). High Voltage Chip SMD Ceramic Capacitors, High Voltage MLCC
250V, 500V, 1000V 1KV, 1500V, 2000V 2KV, 2500V, 3000V 3KV, 4000V 4KV, 5000V 5KV, 6000V, 6KV, 7000V, 7KV, 8000V,
8KV, 9000V, 9KV 10KV HV MLCC
5). High temperature Chip SMD ceramic capacitors, High temperature MLCC
125°C, 150°C, 175°C, 200°C, 250°C, 300°C Radial Leaded High Voltage Ceramic Capacitors, HV MLCC
125C, 150C, 175C, 200C, 250C, 300C High Temperature HV Multilayer Chip SMD Uncoated Ceramic Capacitors MLCC
AVX High Voltage Ceramic Capacitors Reference
AVX is a leading international manufacturer and supplier of a vast portfolio of advanced electronic components, including: capacitors,
inductors, filters, resistors, couplers, diodes, and circuit protection devices, as well as a broad range of innovative sensor, control, inter
connect and antenna solutions. AVX has successfully served the automotive, industrial, medical, military, consumer electronics, communications,
and transportation markets.
HK Type – Strontium-based Dielectric Uncoated Devices With Fixtures
HK30E50281M; HK40E50411M; HK40E50501M; HK40E50561M; HK50E50751M; HK50E50851M; HK50E50102M; HK60E51351M; HK60E50152M; HK60E51651M
HK30E61950M; HK40E63750M; HK50E60501M; HK50E60701M; HK60E60851M; HK60E60102M; HK60E60122M; HK50E90501M; HK60E96750M; HK60E90751M
HK60E98250M
AVX stopped the production of these high voltage ceramic capacitors, if you need any alternatives please CLICK HERE.
