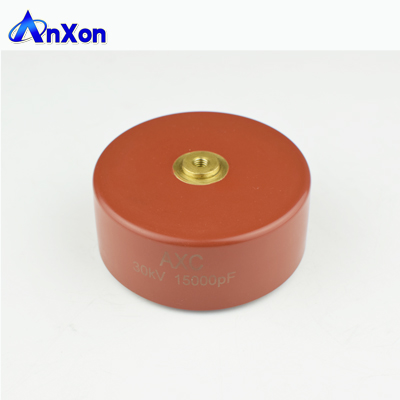

10KV 15000PF 15nf 153 High temperature stability capacitor
Cixi AnXon Electronic Co., Ltd is a leader in the design and manufacture of complex electronic ceramic
components and assemblies used in a wide range of applications and cutting edge technologies. AnXon
specializes in the development and production of dielectric and ferroelectric materials and components.
Main Specifications
Rated DC voltage
10kVdc
Rated Capacitance
15000PF ±10% (20ºC,1kHz,1Vrms)
Ceramic dielectric material
Y5T
Part Number
AXCT8GD50153KYD1B
Dimensions
D80 x H20 x L24, M5 (other value available on request)
Dissipation factor
Max 0.2%
Capacitance change with temperature
+22/-33%
Withstand voltage test
1.5 times Rated DC Voltage (50Hz, in oil, 60s)
Insulation resistance (1000Vdc/60s)
>100GΩ
Operating Temperature ranges
-30 +85ºC
Partial Discharge Test (PD)
20pC 20kV, other value available on request
Self-inductance (ESL)
LS ≤ 30nH

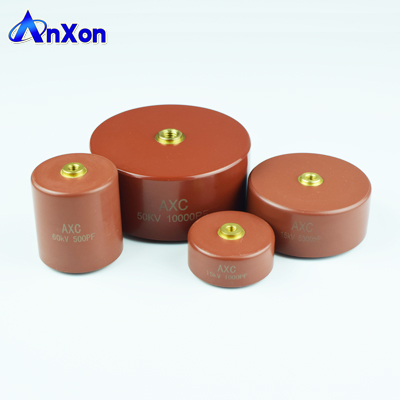

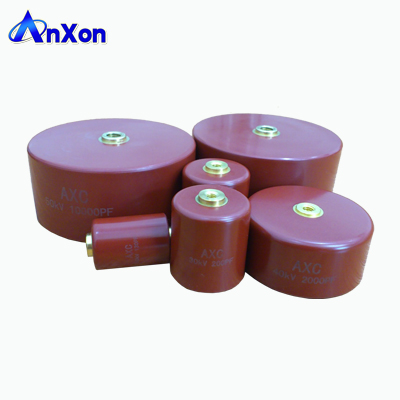

Other Product Types
Cixi AnXon Electronic is committed to providing customers with mature, high quality, high reliability and customized
high voltage ceramic capacitors. It is suitable for various high voltage, high frequency, high power, high temperature
and high current applications.The main materials are: NP0, COG, SL, DL, K1000, N4700, Y5T, Y5S, Y5P, Y5R, Y5U
Rated Products
Rated
Voltage
Un
(KVDC)
Rated
Capacitance
Cn
(PF)
Ceramic
Dielectric
Dimensions
(mm)
Ceramic
Dielectric
Code
D±1
H±1
L±2
M
AXCT8GD50163KXD1B
6
16000
Y5T
60
14
18
4
D5
AXCT8GD30203KXD1B
6
20000
Y5T
80
16
20
5
D3
AXCT8GD50253KXD1B
6
25000
Y5T
80
16
20
5
D5
AXCT8GC40421KYD1B
10
420
DL
38
15
19
4
C4
AXCT8GE40561KYD1B
10
560
N4700
24
14
18
4
E4
AXCT8GE40701KYD1B
10
700
N4700
30
15
19
4
E4
AXCT8GC80102KYD1B
10
1000
DL
40
14
18
4
C8
AXCT8GD30102KYD1B
10
1000
Y5T
30
16
20
4
D3
AXCT8GE40122KYD1B
10
1200
N4700
38
16
20
4
E4
AXCT8GE40152KYD1B
10
1500
N4700
38
17
21
4
E4
AXCT8GE40282KYD1B
10
2800
N4700
40
15
19
4
E4
AXCT8GC80302KYD1B
10
3000
DL
60
14
18
5
C8
AXCT8GD30302KYD1B
10
3000
Y5T
40
18
22
4
D3
AXCT8GD50332KYD1B
10
3300
Y5T
38
18
22
4
D5
AXCT8GE40402KYD1B
10
4000
N4700
60
20
24
5
E4
AXCT8GE40502KYD1B
10
5000
N4700
60
18
22
5
E4
AXCT8GD50852KYD1B
10
8500
Y5T
60
18
22
4
D5
AXCT8GE40103KYD1B
10
10000
N4700
80
17
21
5
E4
AXCT8GP30103KYD1B
10
10000
Y5P
80
22
26
5
P3
AXCT8GD50103KYD1B
10
10000
Y5T
60
16
20
4
D5
AXCT8GE40113KYD1B
10
11000
N4700
86
18
22
5
E4
AXCT8GE40123KYD1B
10
12000
N4700
86
18
22
5
E4
AXCT8GD50153KYD1B
10
15000
Y5T
80
20
24
5
D5
AXCT8GD50203KYD1B
10
20000
Y5T
86
20
24
5
D5
Notes
* Withstand voltage test: Un≤80kV 1.5 times Un, Un＞80kV 1.2 times Un, this is minimum figures,
* Standard capacitance tolerance: ±10%, others available on request.
* All specifications are designed for our current customers, other voltage, capacitance, dimensions available on request.

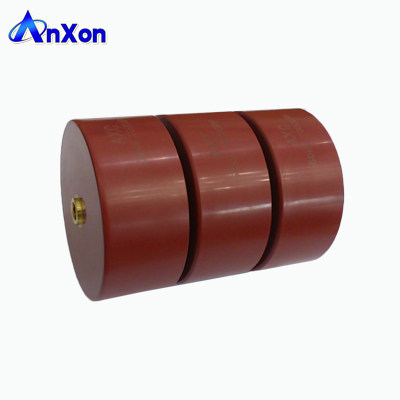

* Larger capacitance and higher voltage capacitor banks available on request.
Main Applications
The main applications include live line indicators, AC dividers, grading systems for power distribution network, protection for
HV switches and power circuit breakers. Coupling, by-passing high frequency circuits also use HV ceramic disc capacitors.
Laser pulses circuitry, high energy and high voltage test equipment (HV accelerators, physics research) require products
especially adapted to their specific requirements.
• High voltage supply for gas laser
• High-voltage dividers
• Marx generators, Power generators
• High voltage columns for collider of HV accelerator
• High-voltage coupling devices
• Power line coupling system for Internet & Telecom
• Lightning arresters, voltage distribution systems
• HV Power Supply for X-ray, excimer lasers
Production & Quality Management
High voltage doorknob ceramic capacitors from AnXon are 100% tested of the below parameters
• Capacitance
• Tolerance
• Dielectric withstanding voltage
• Dissipation Factor
• Insulation Resistance
• Partial discharge
• Lightening impulse voltage: sampling
AnXon Company
Cixi AnXon Electronic Co., Ltd is a leader in the design and manufacture of complex electronic ceramic components
and assemblies used in a wide range of applications and cutting edge technologies. Specialized manufacturer and
supplier of high voltage ceramic capacitors, doorknob capacitors, pulse power capacitors, RF power capacitors,
AC live line capacitors, high Q capacitors, high temperature capacitors, high quality customize design ceramic
capacitors, high voltage capacitor banks for high energy pulses and storage.
Main Products:
1). High Voltage Disc Ceramic Capacitors
HV ceramic disc capacitors, ultra HV screw doorknob capacitors, AC live line capacitors, Voltage Multiplier Assembly,
Ceramic capacitor stacks, Pulse power capacitors, HV AC ceramic capacitors, Ring style high voltage ceramic capacitors
2). RF power ceramic capacitors,
Disk / plate capacitors, Water cooled power capacitors, Feedthrough RF capacitors, Tubular ceramic capacitors
3). High Q power ceramic capacitors
High Q multilayer capacitors, RF / Microwave Multilayer Capacitors, High Q MLCC
4). High Voltage Chip SMD Ceramic Capacitors, High Voltage MLCC
250V, 500V, 1000V 1KV, 1500V, 2000V 2KV, 2500V, 3000V 3KV, 4000V 4KV, 5000V 5KV, 6000V, 6KV, 7000V, 7KV, 8000V,
8KV, 9000V, 9KV 10KV HV MLCC
5). High temperature Chip SMD ceramic capacitors, High temperature MLCC
125°C, 150°C, 175°C, 200°C, 250°C, 300°C Radial Leaded High Voltage Ceramic Capacitors, HV MLCC
125C, 150C, 175C, 200C, 250C, 300C High Temperature HV Multilayer Chip SMD Uncoated Ceramic Capacitors MLCC
AVX High Voltage Ceramic Capacitors Reference
AVX is a leading international manufacturer and supplier of a vast portfolio of advanced electronic components, including: capacitors,
inductors, filters, resistors, couplers, diodes, and circuit protection devices, as well as a broad range of innovative sensor, control, inter
connect and antenna solutions. AVX has successfully served the automotive, industrial, medical, military, consumer electronics, communications,
and transportation markets.
HP Type – Strontium-based Dielectric
HP30EX0561M; HP30EX0751M; HP30EX0102M; HP40EX0152M; HP40EX0182M; HP40EX0202M; HP50EX0252M; HP50EX0272M; HP50EX0332M
HP60EX0372M; HP60EX0402M; HP60EX0502M; HP60EX0562M; HP30EY0501M; HP30EY0561M; HP30EY0751M; HP40EY0102M; HP40EY0132M
HP40EY0152M; HP50EY0202M; HP50EY0222M; HP50EY0252M; HP60EY0302M; HP60EY0332M; HP60EY0372M; HP60EY0402M; HP30E30561M
HP40E30821M; HP40E30102M; HP40E31121M; HP50E30152M; HP50E30172M; HP50E30202M; HP60E30272M; HP60E30302M; HP60E30332M
HP30E40391M; HP40E40751M; HP50E40102M; HP50E40142M; HP60E40172M; HP60E40202M; HP60E40242M; HP30E50281M; HP40E50411M
HP40E50501M; HP40E50561M; HP50E50751M; HP50E50851M; HP50E50102M; HP60E51351M; HP60E50152M; HP60E51651M; HP30E61950M
HP40E63750M; HP50E60501M; HP50E60501M; HP60E60851M; HP60E60102M; HP60E60122M; HP50E90501M; HP60E96750M; HP60E90751M
HP60E98250M
AVX stopped the production of these high voltage ceramic capacitors, if you need any alternatives please CLICK HERE.
