AnXon 15KV 1900PF EMI filtering capacitor for PSC module in wind turbine system
Cixi AnXon Electronic Co., Ltd is a leader in the design and manufacture of complex electronic ceramic
components and assemblies used in a wide range of applications and cutting edge technologies. AnXon
specializes in the development and production of dielectric and ferroelectric materials and components.
Main Specifications
Rated DC voltage
15kVdc
Rated Capacitance
1900PF ±10% (20ºC,1kHz,1Vrms)
Ceramic dielectric material
N4700
Part Number
AXCT8GE40192KZD1B
Dimensions
D38 x H14 x L18, M4 (other value available on request)
Dissipation factor
Max 0.2%
Capacitance change with temperature
+22/-33%
Withstand voltage test
1.5 times Rated DC Voltage (50Hz, in oil, 60s)
Insulation resistance (1000Vdc/60s)
>100GΩ
Operating Temperature ranges
-30 +85ºC
Partial Discharge Test (PD)
10pC 15kV, other value available on request
Self-inductance (ESL)
LS ≤ 30nH

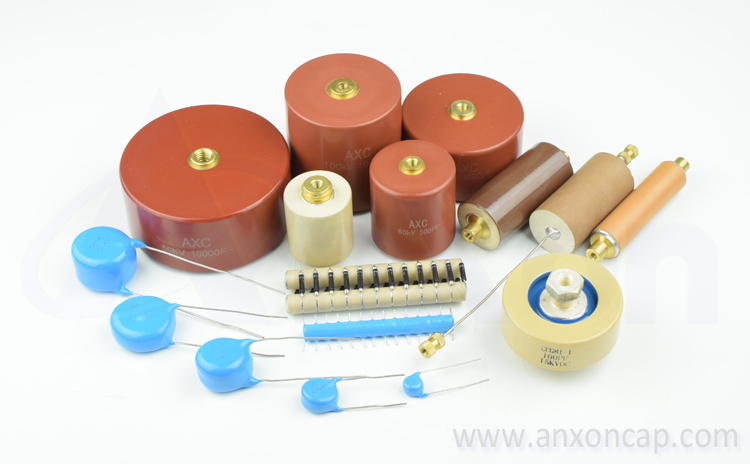

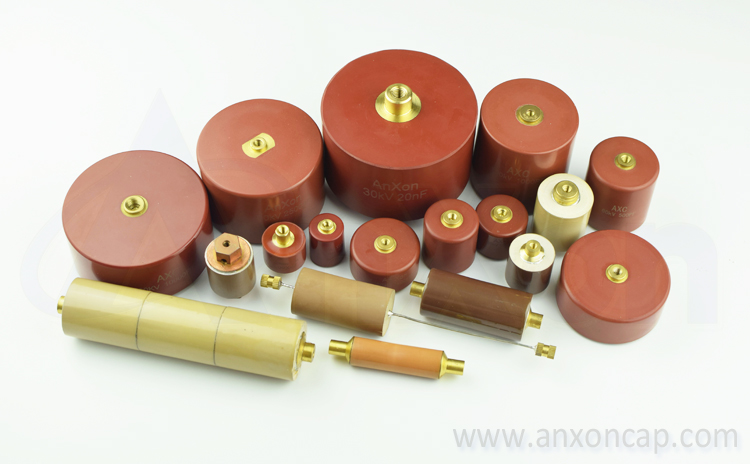

Other Product Types
Cixi AnXon Electronic is committed to providing customers with mature, high quality, high reliability and customized
high voltage ceramic capacitors. It is suitable for various high voltage, high frequency, high power, high temperature
and high current applications.The main materials are: NP0, COG, SL, DL, K1000, N4700, Y5T, Y5S, Y5P, Y5R, Y5U
Rated Products
Rated
Voltage
Un
(KVDC)
Rated
Capacitance
Cn
(PF)
Ceramic
Dielectric
Dimensions
(mm)
Ceramic
Dielectric
Code
D±1
H±1
L±2
M
AXCT8GN10250KZD1B
15
25
NPO
24
16
20
4
N1
AXCT8GP10251KZD1B
15
250
Y5P
24
20
24
4
P1
AXCT8GC40471KZD1B
15
470
DL
40
16
20
4
C4
AXCT8GE40501KZD1B
15
500
N4700
30
16
20
4
E4
AXCT8GE40751KZD1B
15
750
N4700
30
16
20
4
E4
AXCT8GE40102KZD1B
15
1000
N4700
38
18
22
4
E4
AXCT8GE40112KZD1B
15
1100
N4700
30
14
18
4
E4
AXCT8GE40152KZD1B
15
1500
N4700
38
16
20
4
E4
AXCT8GE40192KZD1B
15
1900
N4700
38
14
18
4
E4
AXCT8GD30202KZD1B
15
2000
Y5T
38
18
22
4
D3
AXCT8GC80302KZD1B
15
3000
DL
70
16
20
5
C8
AXCT8GE40342KZD1B
15
3400
N4700
52
14
18
4
E4
AXCT8GE40532KZD1B
15
5300
N4700
60
16
20
4
E4
AXCT8GD30532KZD1B
15
5300
Y5T
60
24
28
5
D3
AXCT8GS40532KZD1B
15
5300
Y5S
52
18
22
4
S4
AXCT8GD30602KZD1B
15
6000
Y5T
60
18
22
4
D3
AXCT8GD50682KZD1B
15
6800
Y5T
52
18
22
4
D5
AXCT8GE40702KZD1B
15
7000
N4700
80
20
24
5
E4
AXCT8GS40702KZD1B
15
7000
Y5S
60
20
24
5
S4
AXCT8GD50852KZD1B
15
8500
Y5T
70
24
28
5
D5
AXCT8GE40103KZD1B
15
10000
N4700
86
18
22
5
E4
AXCT8GD30103KZD1B
15
10000
Y5T
80
22
26
5
D3
AXCT8GD50103KZD1B
15
10000
Y5T
70
22
26
5
D5
AXCT8GD50133KZD1B
15
13000
Y5T
80
22
26
5
D5
AXCT8GD50153KZD1B
15
15000
Y5T
86
24
28
5
D5
AXCT8GD50173KZD1B
15
17000
Y5T
86
22
26
5
D5
Notes
* Withstand voltage test: Un≤80kV 1.5 times Un, Un＞80kV 1.2 times Un, this is minimum figures,
* Standard capacitance tolerance: ±10%, others available on request.
* All specifications are designed for our current customers, other voltage, capacitance, dimensions available on request.
* Larger capacitance and higher voltage capacitor banks available on request.
Main Applications
The main applications include live line indicators, AC dividers, grading systems for power distribution network, protection for
HV switches and power circuit breakers. Coupling, by-passing high frequency circuits also use HV ceramic disc capacitors.
Laser pulses circuitry, high energy and high voltage test equipment (HV accelerators, physics research) require products
especially adapted to their specific requirements.
• High voltage supply for gas laser
• High-voltage dividers
• Marx generators, Power generators
• High voltage columns for collider of HV accelerator
• High-voltage coupling devices
• Power line coupling system for Internet & Telecom
• Lightning arresters, voltage distribution systems
• HV Power Supply for X-ray, excimer lasers
Production & Quality Management
High voltage doorknob ceramic capacitors from AnXon are 100% tested of the below parameters
• Capacitance
• Tolerance
• Dielectric withstanding voltage
• Dissipation Factor
• Insulation Resistance
• Partial discharge
• Lightening impulse voltage: sampling
AnXon Company
Cixi AnXon Electronic Co., Ltd is a leader in the design and manufacture of complex electronic ceramic components
and assemblies used in a wide range of applications and cutting edge technologies. Specialized manufacturer and
supplier of high voltage ceramic capacitors, doorknob capacitors, pulse power capacitors, RF power capacitors,
AC live line capacitors, high Q capacitors, high temperature capacitors, high quality customize design ceramic
capacitors, high voltage capacitor banks for high energy pulses and storage.
Main Products:
1). High Voltage Disc Ceramic Capacitors
HV ceramic disc capacitors, ultra HV screw doorknob capacitors, AC live line capacitors, Voltage Multiplier Assembly,
Ceramic capacitor stacks, Pulse power capacitors, HV AC ceramic capacitors, Ring style high voltage ceramic capacitors
2). RF power ceramic capacitors,
Disk / plate capacitors, Water cooled power capacitors, Feedthrough RF capacitors, Tubular ceramic capacitors
3). High Q power ceramic capacitors
High Q multilayer capacitors, RF / Microwave Multilayer Capacitors, High Q MLCC
4). High Voltage Chip SMD Ceramic Capacitors, High Voltage MLCC
250V, 500V, 1000V 1KV, 1500V, 2000V 2KV, 2500V, 3000V 3KV, 4000V 4KV, 5000V 5KV, 6000V, 6KV, 7000V, 7KV, 8000V,
8KV, 9000V, 9KV 10KV HV MLCC
5). High temperature Chip SMD ceramic capacitors, High temperature MLCC
125°C, 150°C, 175°C, 200°C, 250°C, 300°C Radial Leaded High Voltage Ceramic Capacitors, HV MLCC
125C, 150C, 175C, 200C, 250C, 300C High Temperature HV Multilayer Chip SMD Uncoated Ceramic Capacitors MLCC
AVX High Voltage Ceramic Capacitors Reference
AVX is a leading international manufacturer and supplier of a vast portfolio of advanced electronic components, including: capacitors,
inductors, filters, resistors, couplers, diodes, and circuit protection devices, as well as a broad range of innovative sensor, control, inter
connect and antenna solutions. AVX has successfully served the automotive, industrial, medical, military, consumer electronics, communications,
and transportation markets.
HW Type – Strontium-based Dielectric Uncoated Devices With Fixtures
HW30EX0561M; HW30EX0751M; HW30EX0102M; HW40EX0152M; HW40EX0182M; HW40EX0202M; HW50EX0252M; HW50EX0272M;HW50EX0332M
HW60EX0372M; HW60EX0402M; HW60EX0502M; HW60EX0562M; HW30EY0501M; HW30EY0561M; HW30EY0751M; HW40EY0102M; HW40EY0132M
HW40EY0152M; HW50EY0202M; HW50EY0222M; HW50EY0252M; HW60EY0302M; HW60EY0332M; HW60EY0372M; HW60EY0402M; HW30E30561M
HW40E30821M; HW40E30102M; HW40E31121M; HW50E30152M; HW50E30172M; HW50E30202M; HW60E30272M; HW60E30302M; HW60E30332M
HW30E40391M; HW40E40751M; HW50E40102M; HW50E40142M; HW60E40172M; HW60E40202M; HW60E40242M; HW30E50281M; HW40E50411M
HW40E50501M; HW40E50561M; HW50E50751M; HW50E50851M; HW50E50102M; HW60E51351M; HW60E50152M; HW60E51651M; HW30E61950M
HW40E63750M; HW50E60501M; HW50E60701M; HW60E60851M; HW60E60102M; HW60E60122M; HW50E90501M; HW60E96750M; HW60E90751M
HW60E98250M
AVX stopped the production of these high voltage ceramic capacitors, if you need any alternatives please CLICK HERE.
